Upgrade Options
Class R-PG50
Air Infiltration/Exfiltration: A3
Forced Entry Resistance: Pass at Grade 10
N.F.R.C. Certified
A.A.M.A. Certified
Keystone Certified
VWD – Vinyl Window Designs
Click to Call: 1-888-243-7626
Vinyl Window Designs (VWD) is one of Canada’s largest and most respected manufacturers of residential Vinyl Windows, Entry Doors and Patio Doors. For over 30 years VWD has built a solid reputation in the industry for providing the best quality products, excellent customer service and prompt delivery all at competitive prices.
General Details
Ultra Window Series
VWD Casement windows are a versatile option that provides timeless elegance to both modern and classic homes. They are designed to work seamlessly with your home and allow you to enjoy an unobstructed view of the outside.
VWD Casement windows can open and close easily with a turn of a foldable crank handle. A multipoint level allows the handle to lock in place creating a sleek look and finish to your window.
For areas of your home that require minimal to full ventilation, casement windows are built with a one sided hinge and can open towards the left or right side.
Configurations
Single

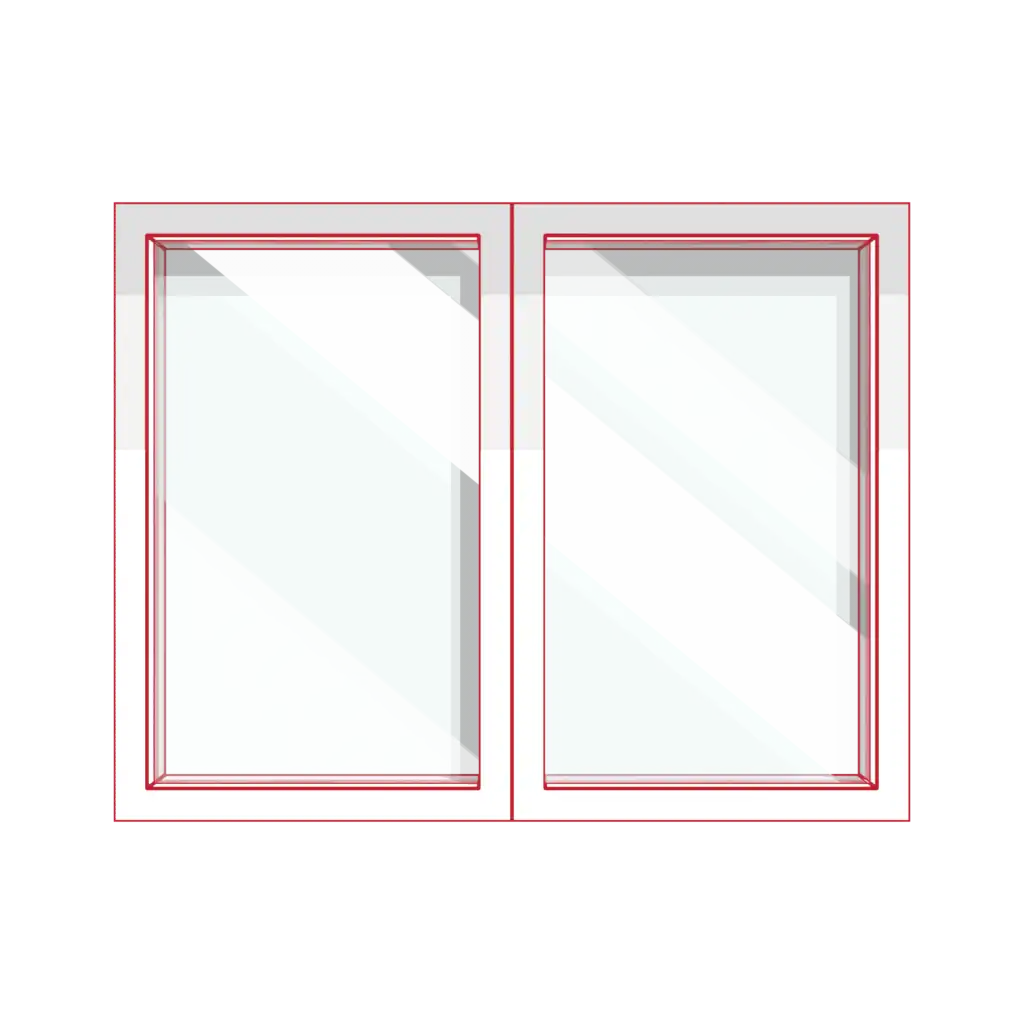

Double

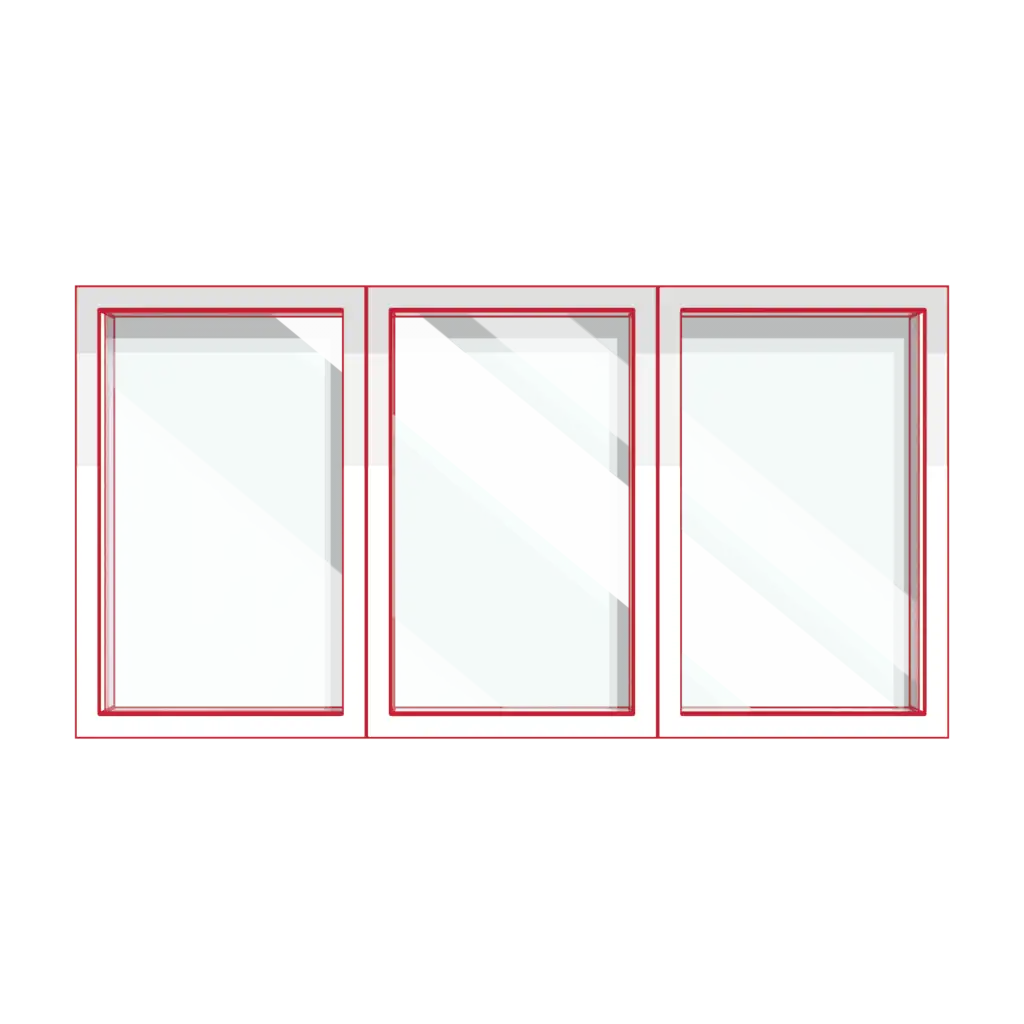

Even Split

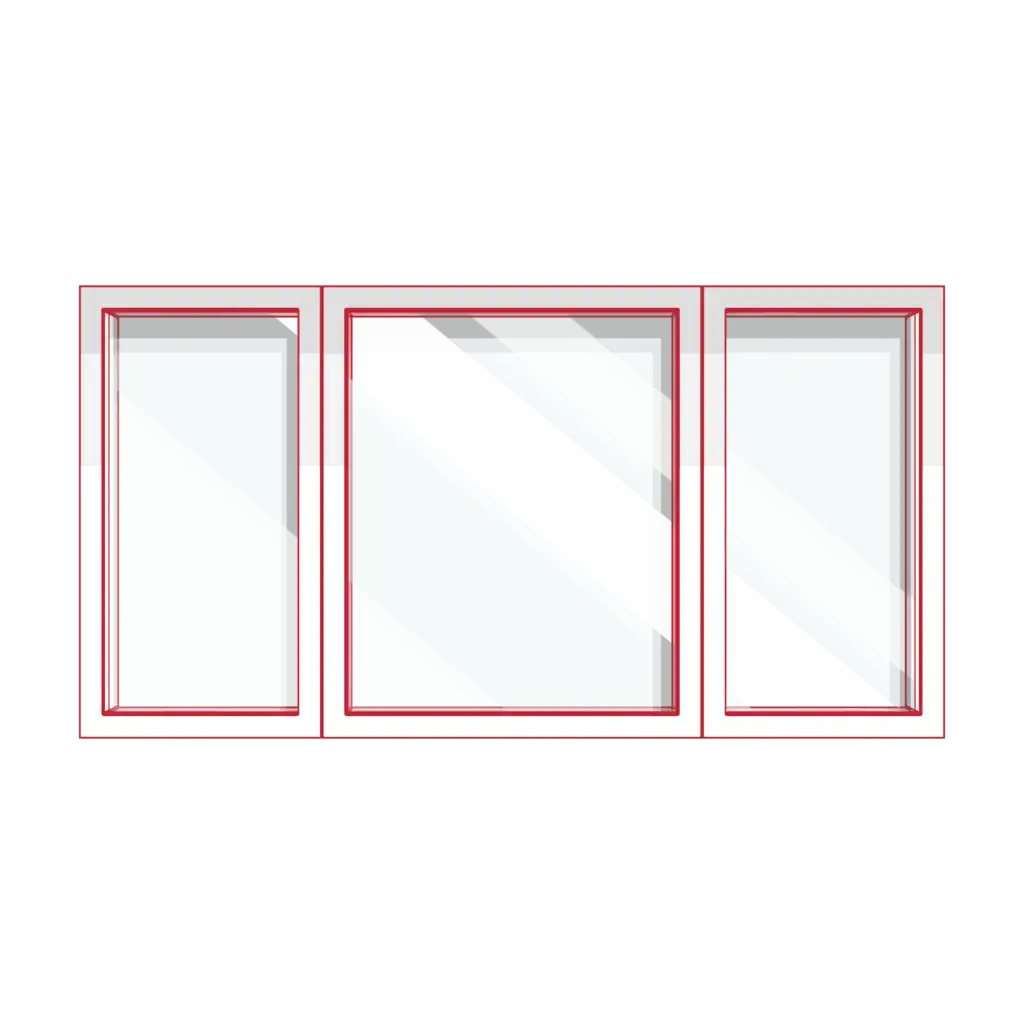

Quarter Half Quarter

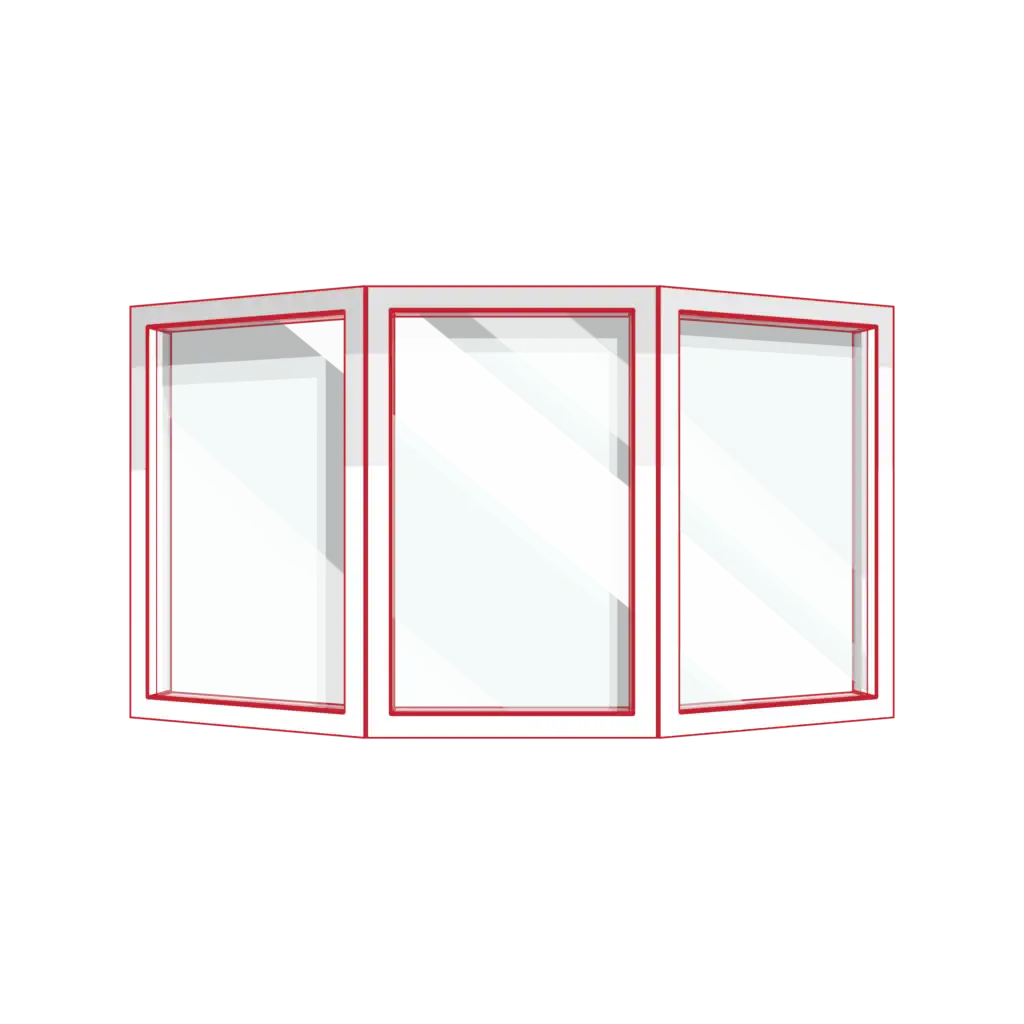

Bay

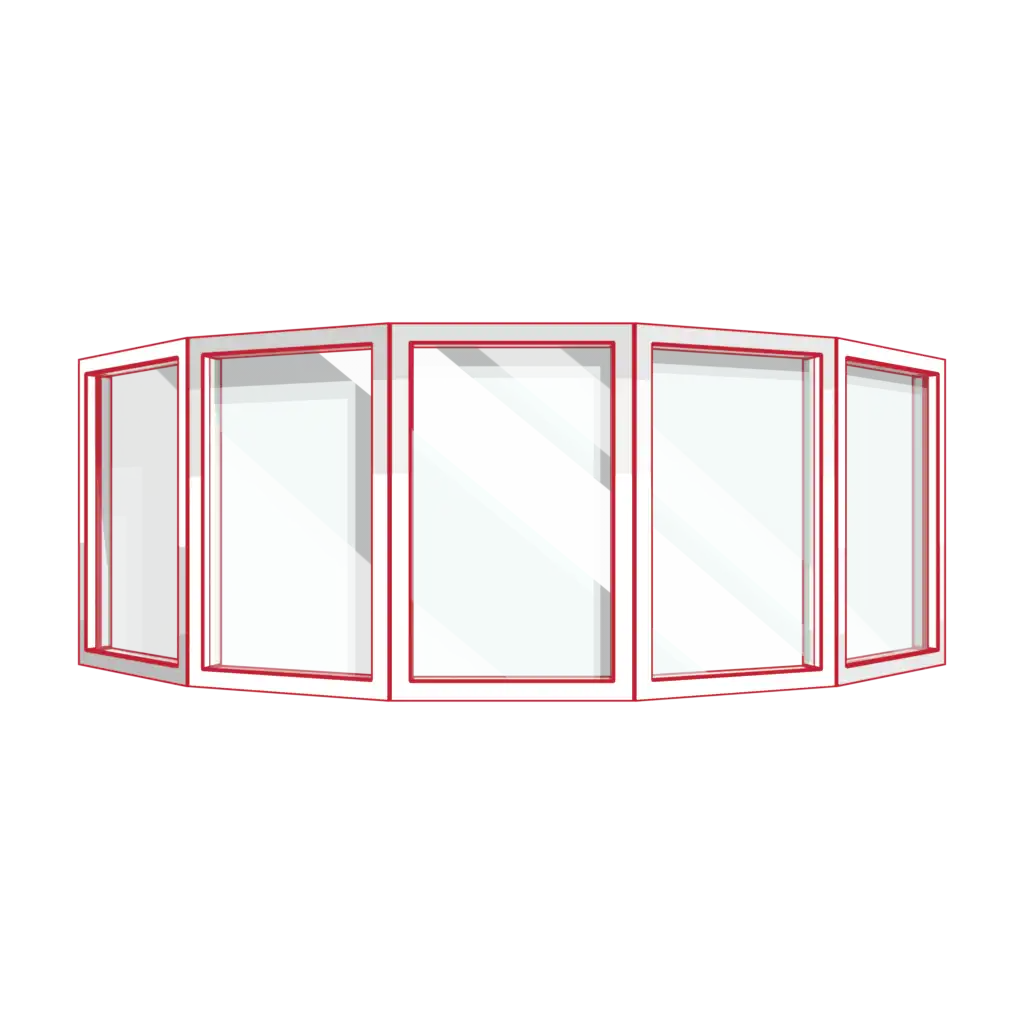

Bow
Specifications
Hardware

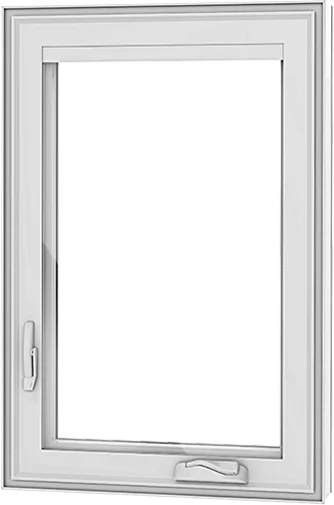

The Ultra Casement and Awning Window System – 800M
It can be ordered with VWD’s patented Rolling Screen System. The screen travels along tracks invisible to the eye and is secured by a latch when it closes. The Ultra Rolling Screen is something that needs to be experienced to be appreciated. 800M features Patent Pending hidden roll-style screen which can be rolled away out-of-sight.
Patented TouchScreen™ Standard – 800TS
Our Unique TouchScreen™ design will allow you to remove and replace your screen with ease. No more pins, tabs, springs or other mechanical parts.
Superior Triple Seal Weather Stripping
High pile is designed to let the water run out while preventing insects from entering. Neoprene bulb seal is the ideal compression seal. Triple Weather Stripping including two full perimeter bulb seals of premium neoprene MaxTemp™ material.
Truth Ultra Operator with Fold-Away Handle
Our standard Truth Ultra Operator is heavy duty, functional and beautiful. The sleek styling allows the handle to fold into a recess in the casing for a clean look allowing clearance from your window coverings!
Aluminum Reinforced Frame
Ensures the casement hardware is securely anchored into the vinyl frame with special cut screws threading into the aluminum, as well as the vinyl.
Single Lever MultipointLocking System and Hinge
The Truth Maxim Multipoint Lock and Hinge System is the industry’s finest and is standard on our Casements and Awnings. The Truth Maxim Hinge is specifically designed to handle heavier loads from larger windows with ease, time after time! All hinges are concealed when closed. Window’s minimum width of 14” opens 90° for easy cleaning. (Widths 12” – 14”open 70°.)

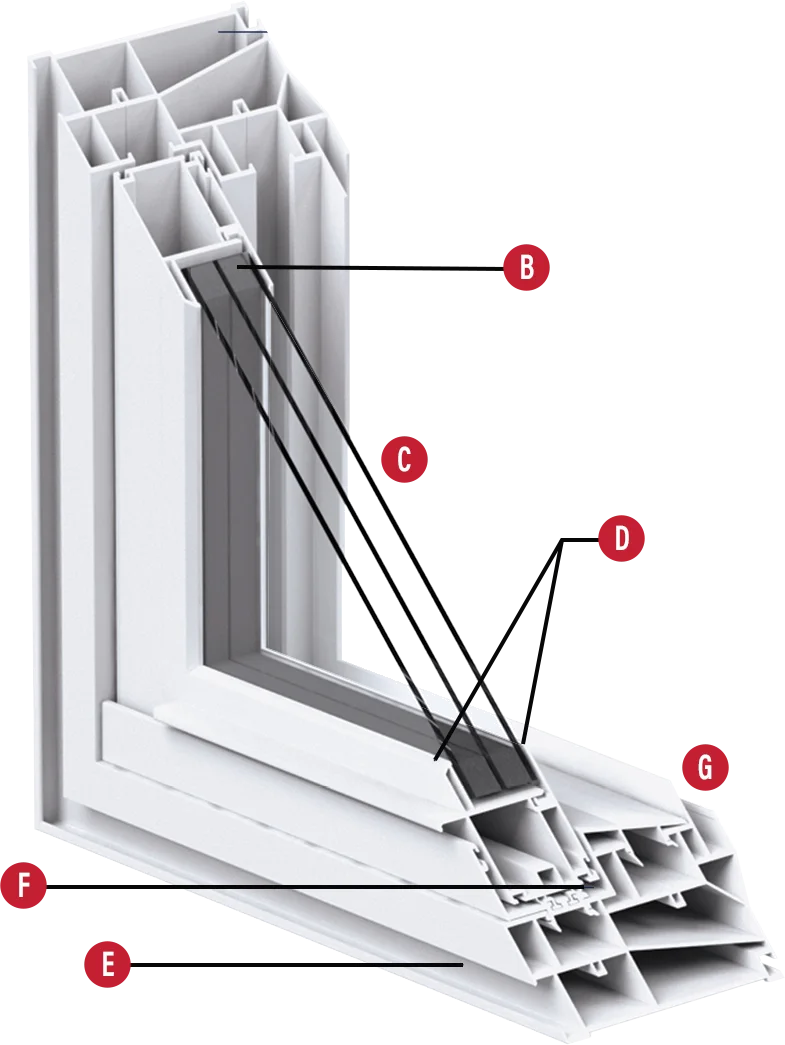

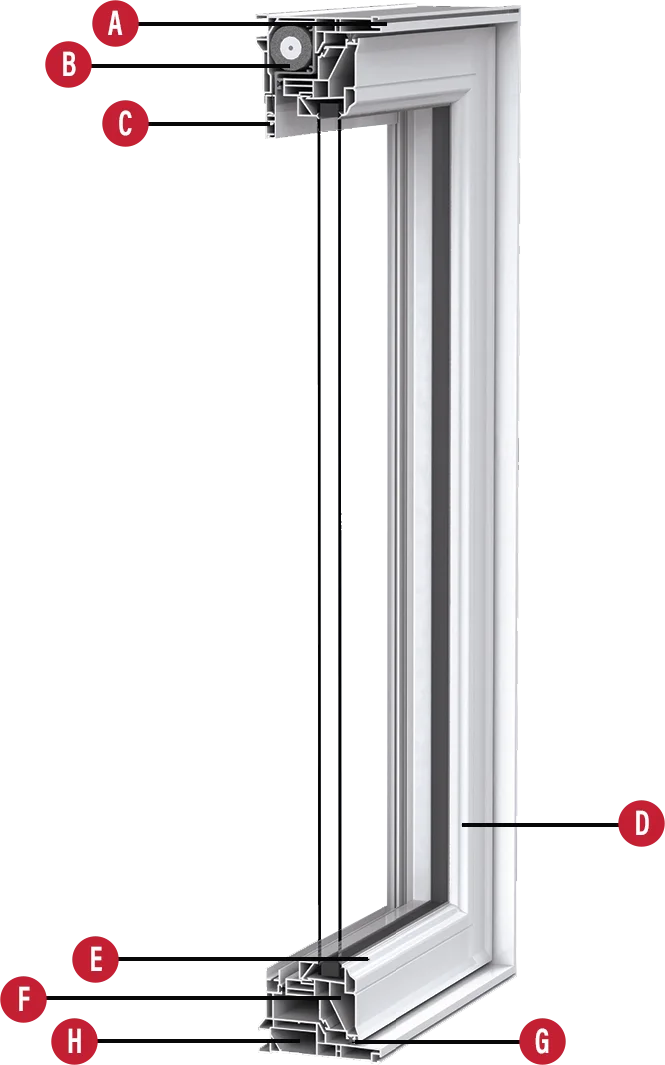

Frame
A
Integrated wood return can be capped for sleek look
B
Patent pending Ultra Hidden Roll ScreenPatent pending Ultra Hidden Roll Screen can be rolled away out-of-sight (800M only)
C
Slim profile sash for optimal viewing
D
Triple Weather Striping including two for perimeter bulb seam of Premium Neopene MaxTemp™ material
E
Double (7/8") & Triple (1 3/8") insulated glass units available
F
Multi-Chambered Fusion Welded Frame
G
Aluminum Reinforcement
H
4 5/8" Frame
Strong, Durable, Maintenance Free uPVC Vinyl Construction
Warranted for a lifetime of performance.
Foam “warmware”
Offered as an option, polyurethane foam insulation is injected into the frame and sash of each window.
Attachments:
The 800M frames feature 4 5/8” standard frame depth for retrofit installations.
Vinyl is impervious to the elements and never requires painting.

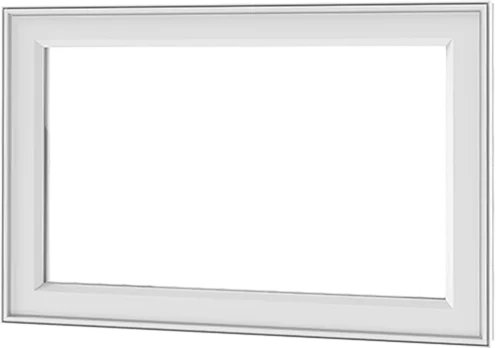

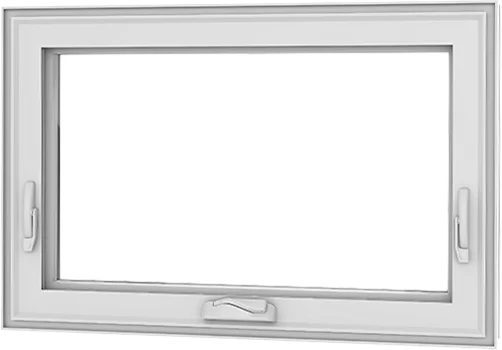

VWD Awning windows are functional and attractive. The Awning windows are a perfect addition to areas of your home where you are looking for more ventilation and protection from the outdoor elements.
VWD Awning windows are hinged at the top and open outwards. They can open and close easily with a turn of a foldable crank handle. A multipoint level allows the handle to lock in place creating a sleek look and finish for your window.
The Awning is ideal for horizontal spaces and hard-to-reach areas.
Configurations
Single
Double
Even Split
Quarter Half Quarter
Bay
Bow
Specifications
Class R-PG50
Air Infiltration/Exfiltration: A3
Forced Entry Resistance: Pass at Grade 10
N.F.R.C. Certified
A.A.M.A. Certified
Keystone Certified
Hardware
The Ultra Casement and Awning Window System – 850M
It can be ordered with VWD’s patented Rolling Screen System. The screen travels along tracks invisible to the eye and is secured by a latch when it closes. The Ultra Rolling Screen is something that needs to be experienced to be appreciated. 800M features Patent Pending hidden roll-style screen which can be rolled away out-of-sight.
Patented TouchScreen™ Standard – 850TS
Our Unique TouchScreen™ design will allow you to remove and replace your screen with ease. No more pins, tabs, springs or other mechanical parts.
Superior Triple Seal Weather Stripping
High pile is designed to let the water run out while preventing insects from entering. Neoprene bulb seal is the ideal compression seal. Triple Weather Stripping including two full perimeter bulb seals of premium neoprene MaxTemp™ material.
Truth Ultra Operator with Fold-Away Handle
Our standard Truth Ultra Operator is heavy duty, functional and beautiful. The sleek styling allows the handle to fold into a recess in the casing for a clean look allowing clearance from your window coverings!
Aluminum Reinforced Frame
Ensures the casement hardware is securely anchored into the vinyl frame with special cut screws threading into the aluminum, as well as the vinyl.
Single Lever MultipointLocking System and Hinge
The Truth Maxim Multipoint Lock and Hinge System is the industry’s finest and is standard on our Casements and Awnings. The Truth Maxim Hinge is specifically designed to handle heavier loads from larger windows with ease, time after time! All hinges are concealed when closed. Window’s minimum width of 14” opens 90° for easy cleaning. (Widths 12” – 14”open 70°.)
Frame
A
Integrated wood return can be capped for sleek look
B
Patent pending Ultra Hidden Roll ScreenPatent pending Ultra Hidden Roll Screen can be rolled away out-of-sight (800M only)
C
Slim profile sash for optimal viewing
D
Triple Weather Striping including two for perimeter bulb seam of Premium Neopene MaxTemp™ material
E
Double (7/8") & Triple (1 3/8") insulated glass units available
F
Multi-Chambered Fusion Welded Frame
G
Aluminum Reinforcement
H
4 5/8" Frame
Strong, Durable, Maintenance Free uPVC Vinyl Construction
Warranted for a lifetime of performance.
Foam “warmware”
Offered as an option, polyurethane foam insulation is injected into the frame and sash of each window.
Attachments:
The 800M frames feature 4 5/8” standard frame depth for retrofit installations.
Vinyl is impervious to the elements and never requires painting.

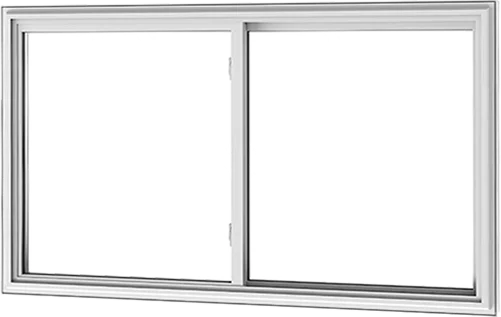

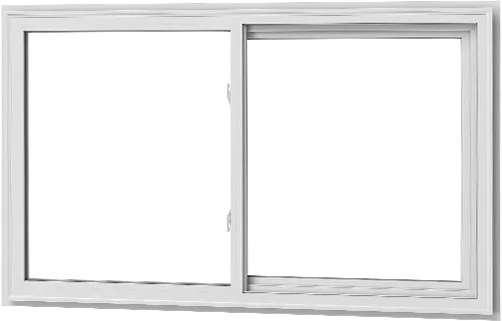

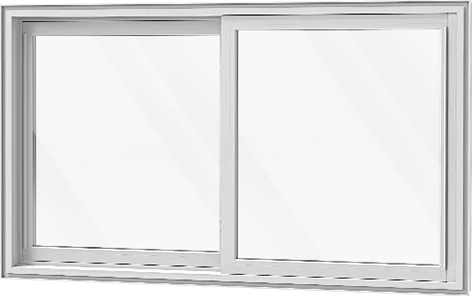

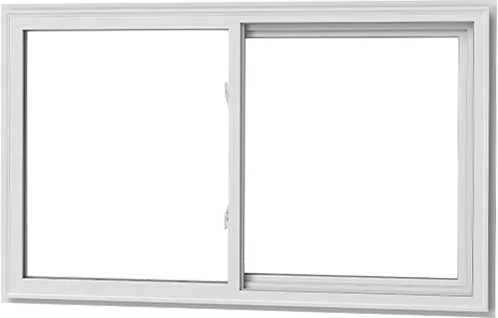

VWD Horizontal Sliding windows are a practical addition to your home. They not only offer an unobstructive view but are a perfect fit for larger openings for any modern or classic home.
VWD Horizontal Sliding windows easily glide from left to right, providing a wide window view with full ventilation. Depending on the area of coverage, choose from a two-lite or three-lite slider that features a large picture window with operable end vents.
Configurations

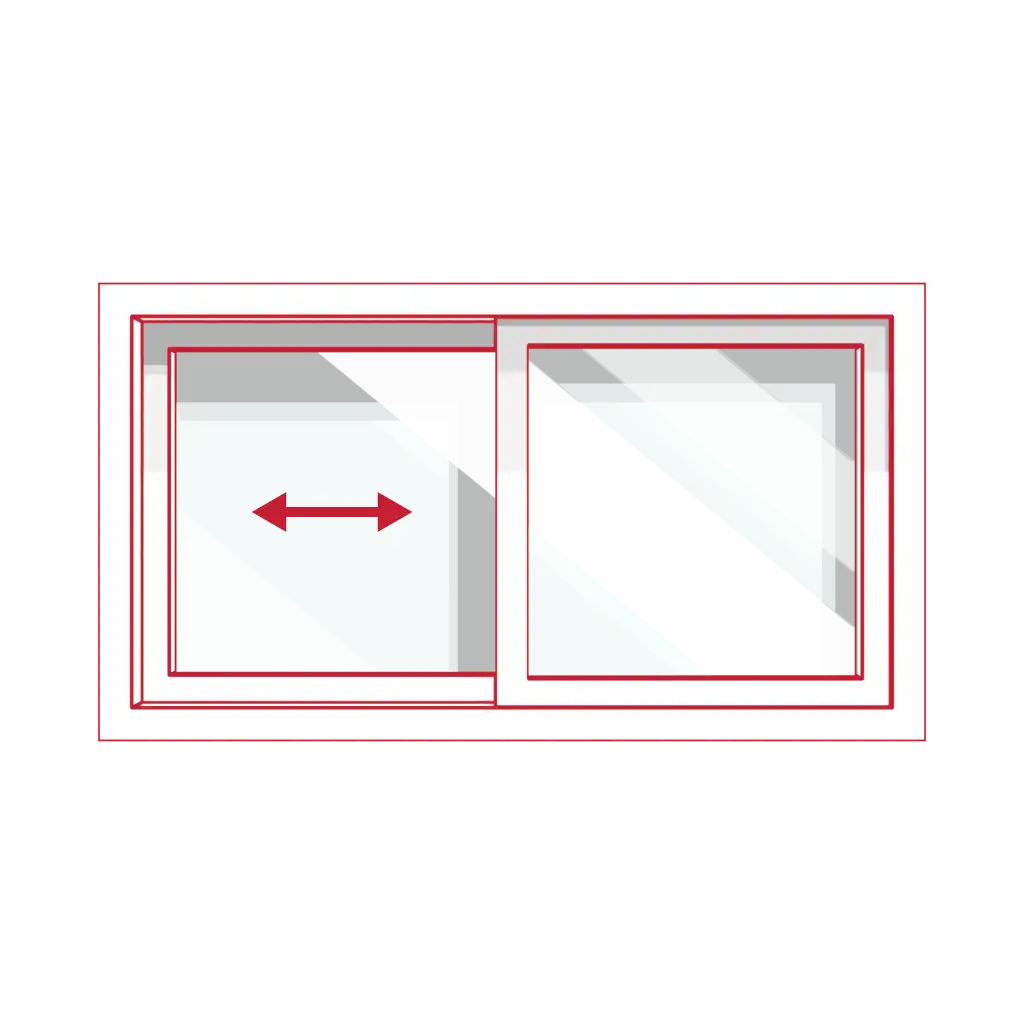

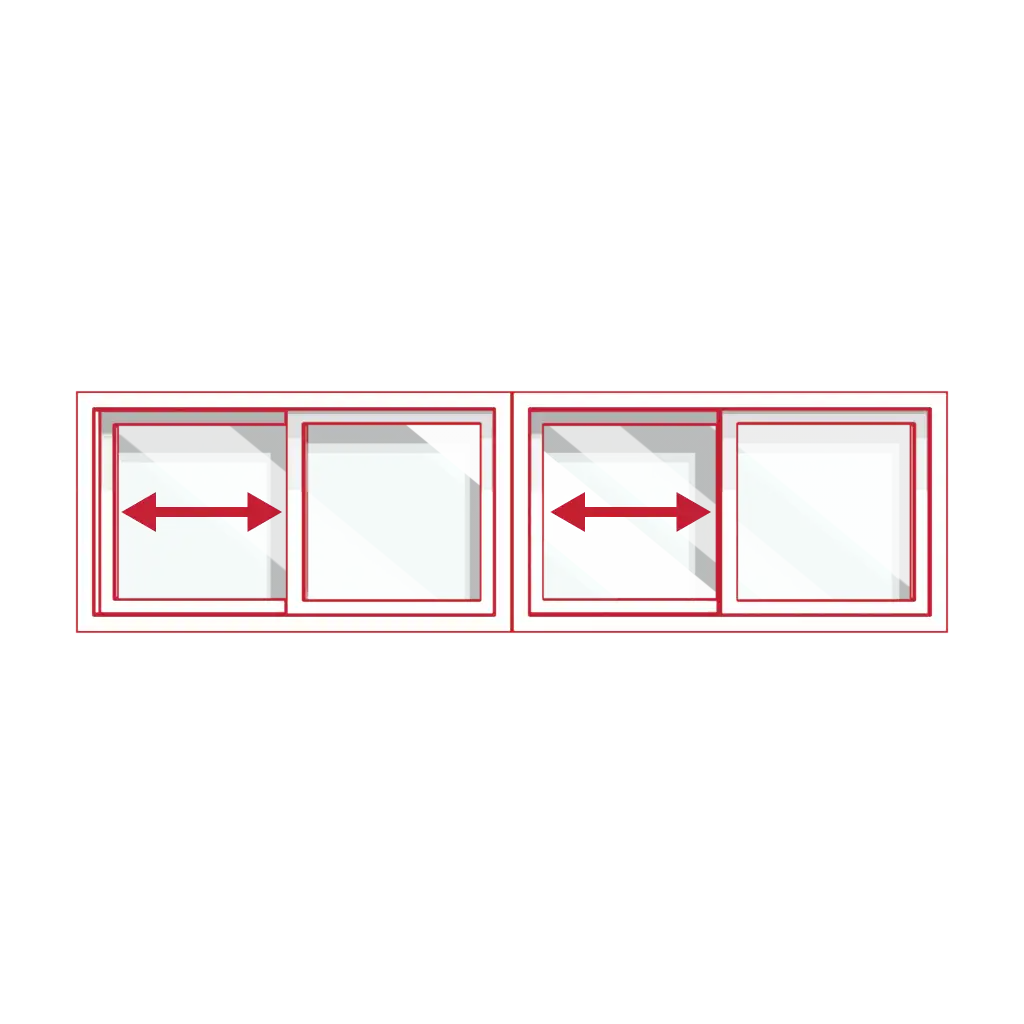

Fixed Over Single Slider

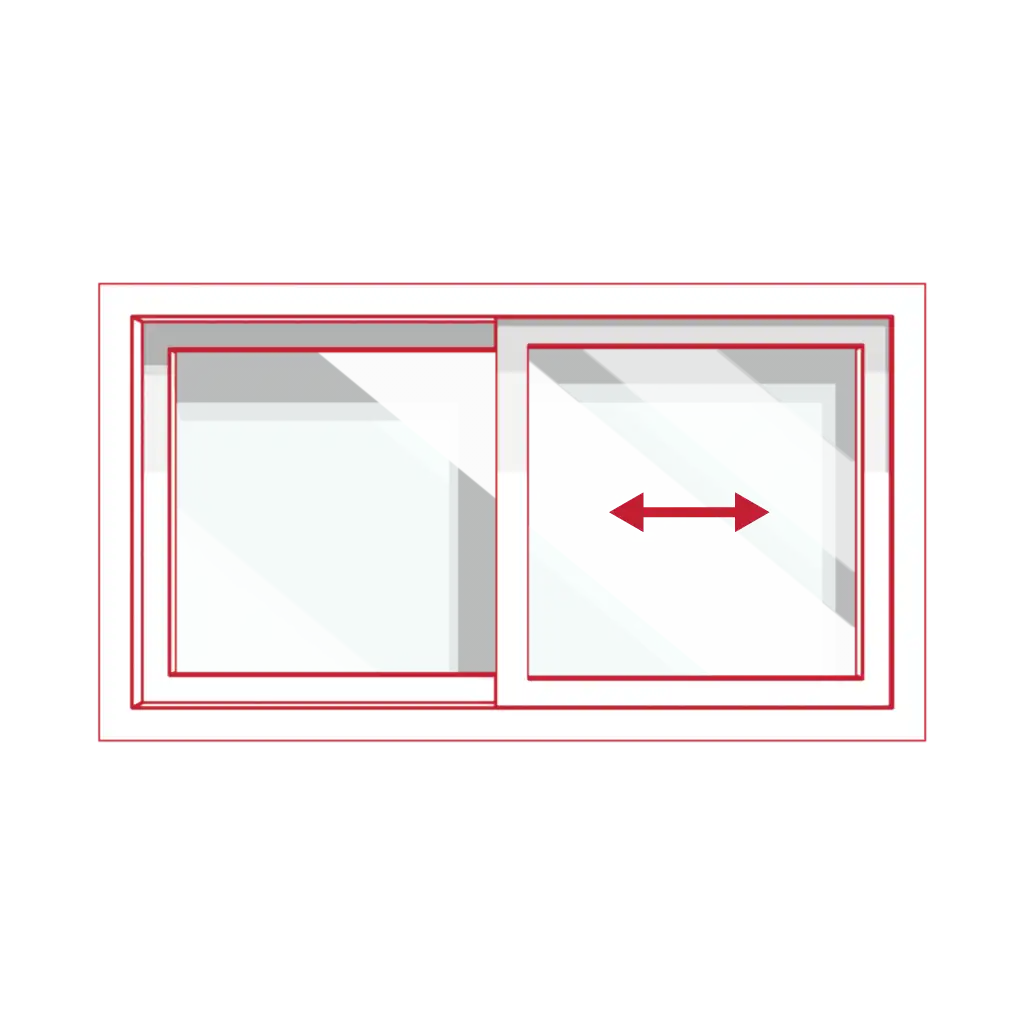

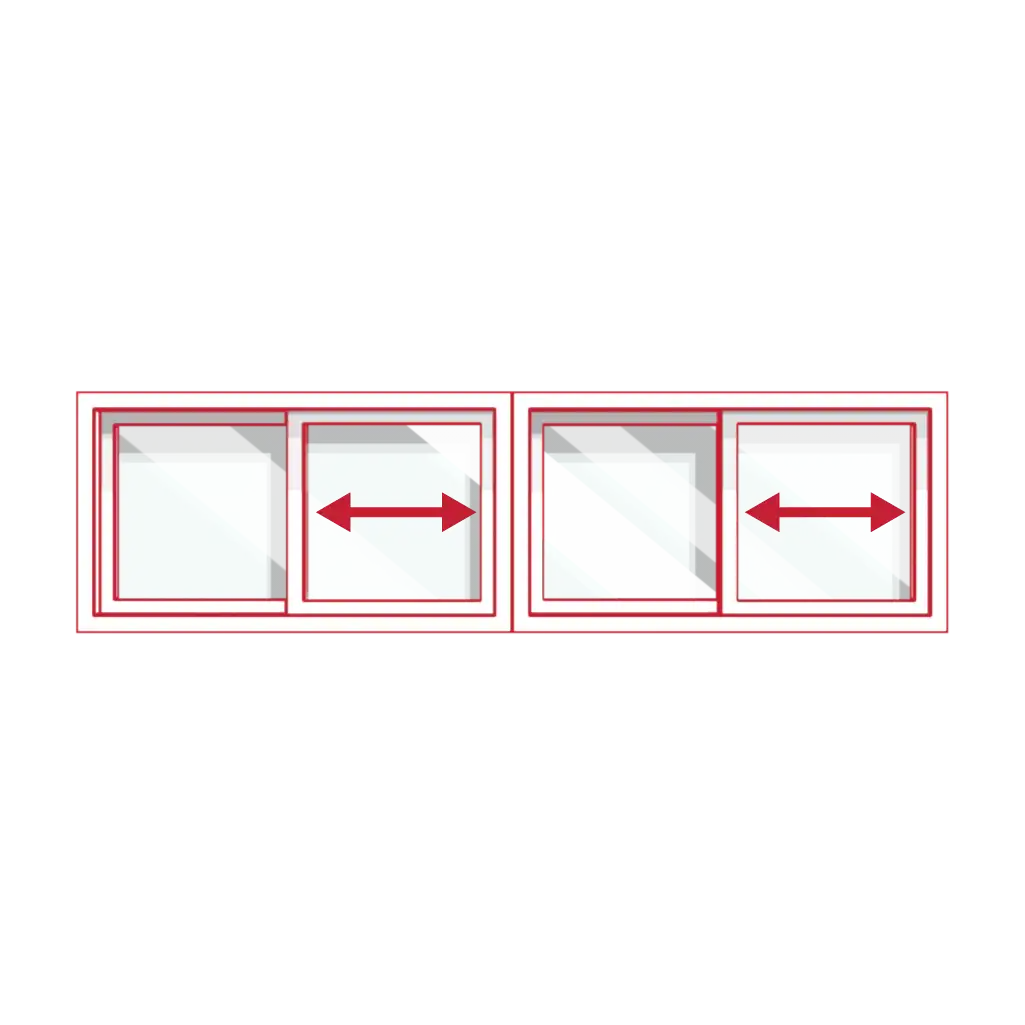

Double

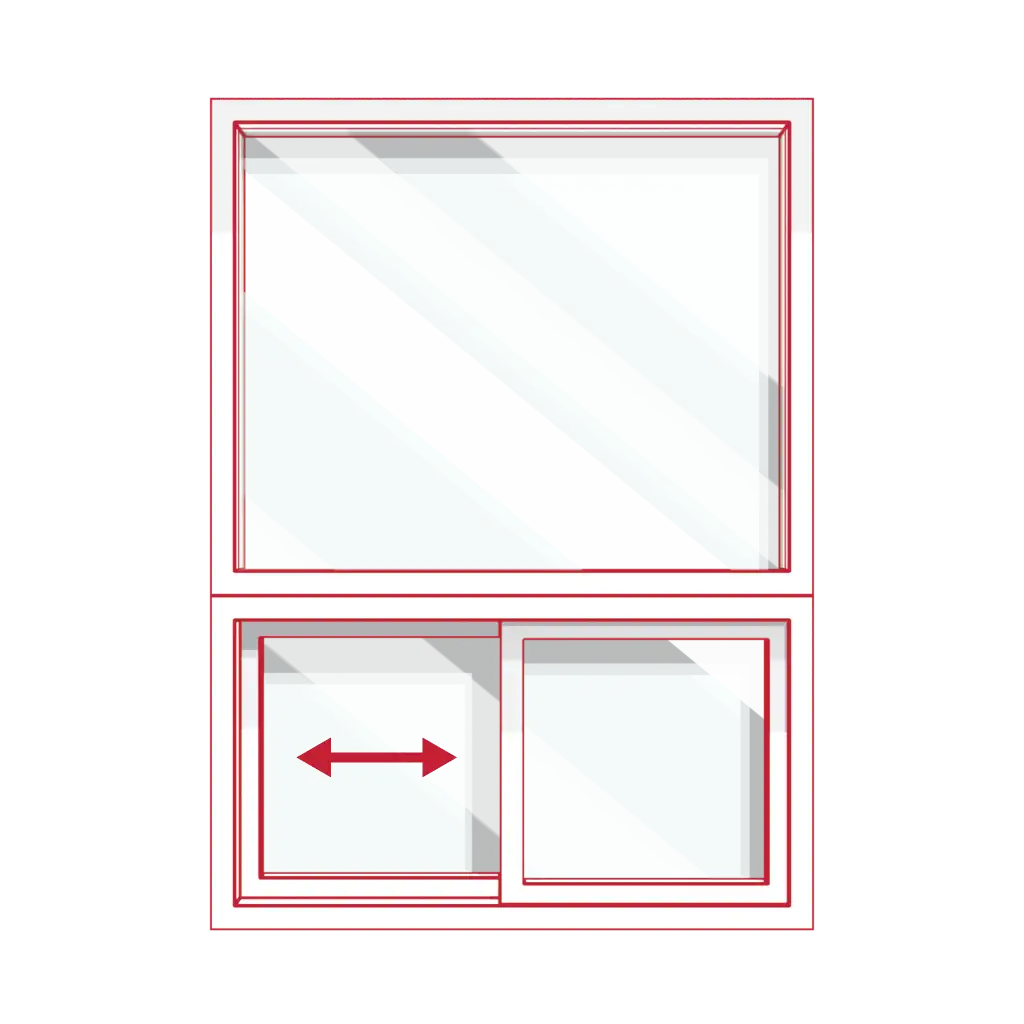

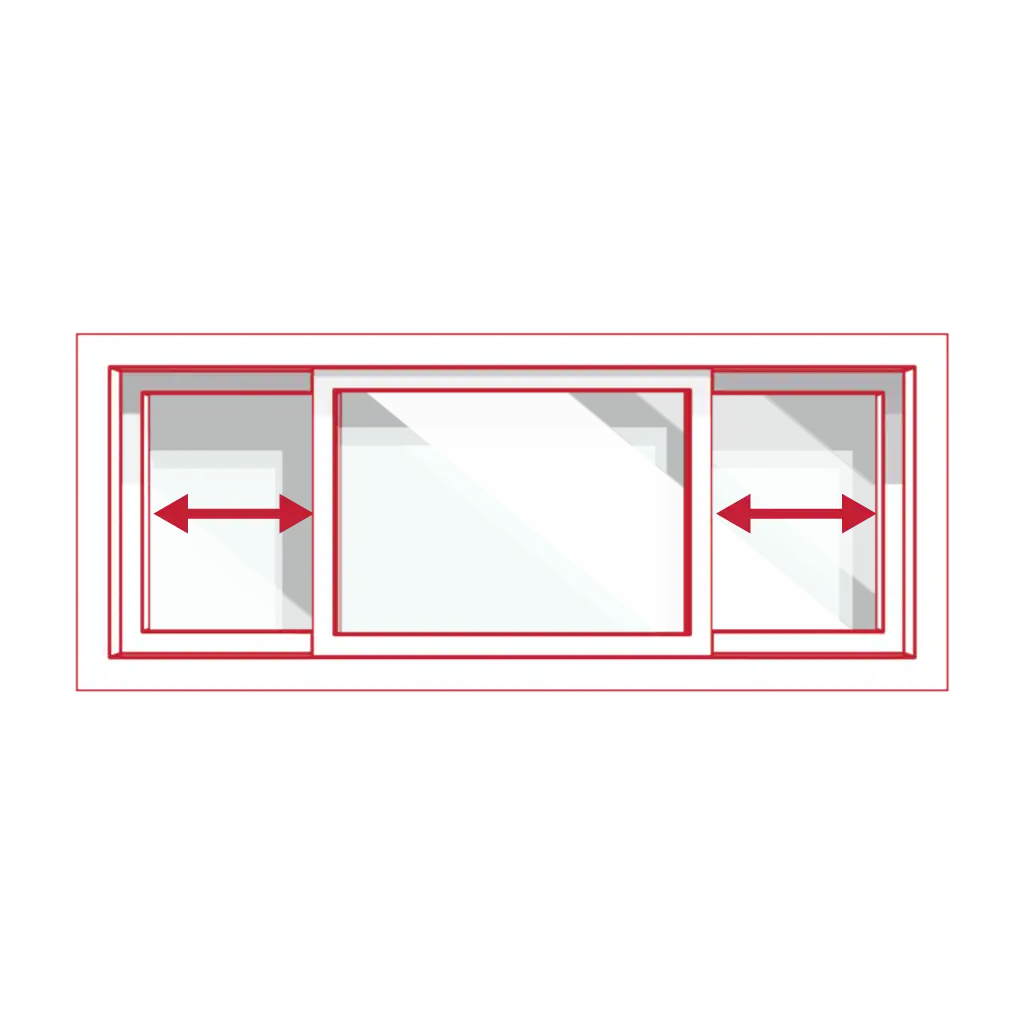

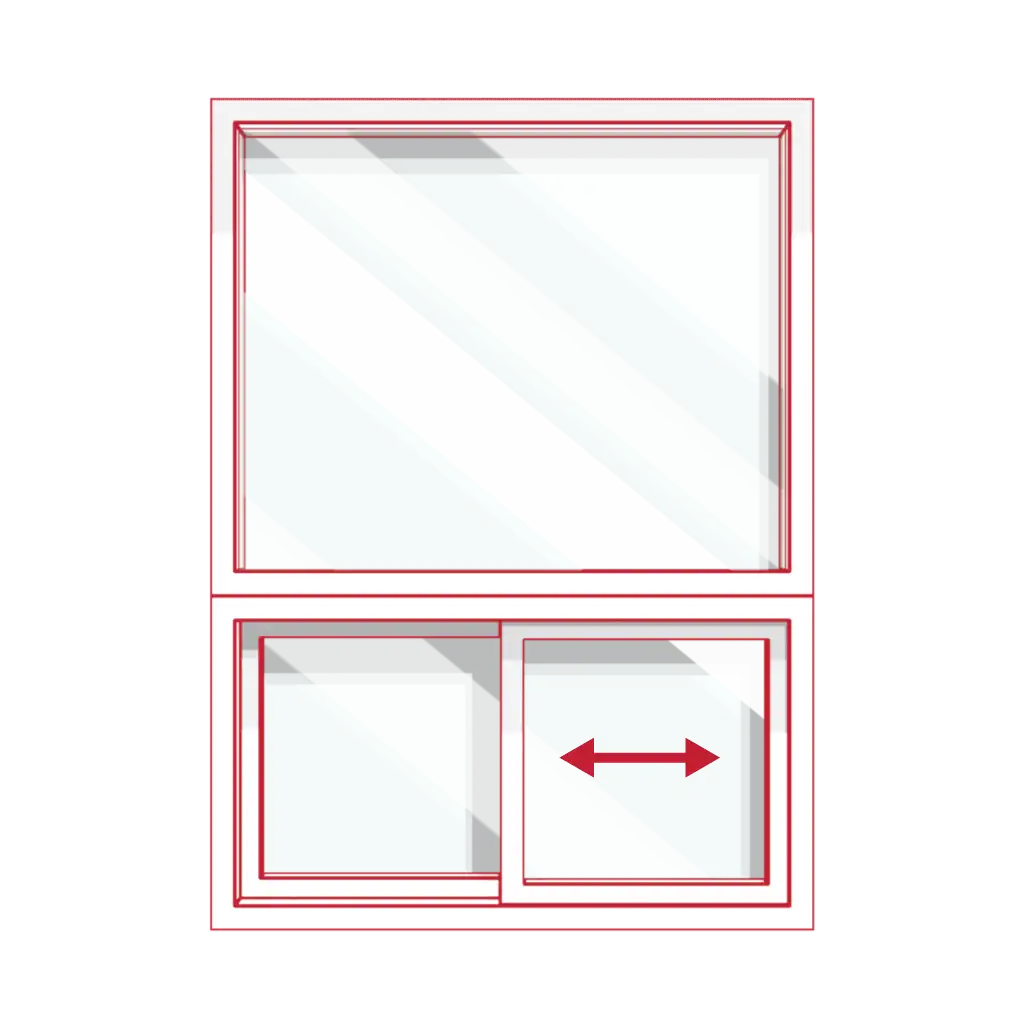

Combination

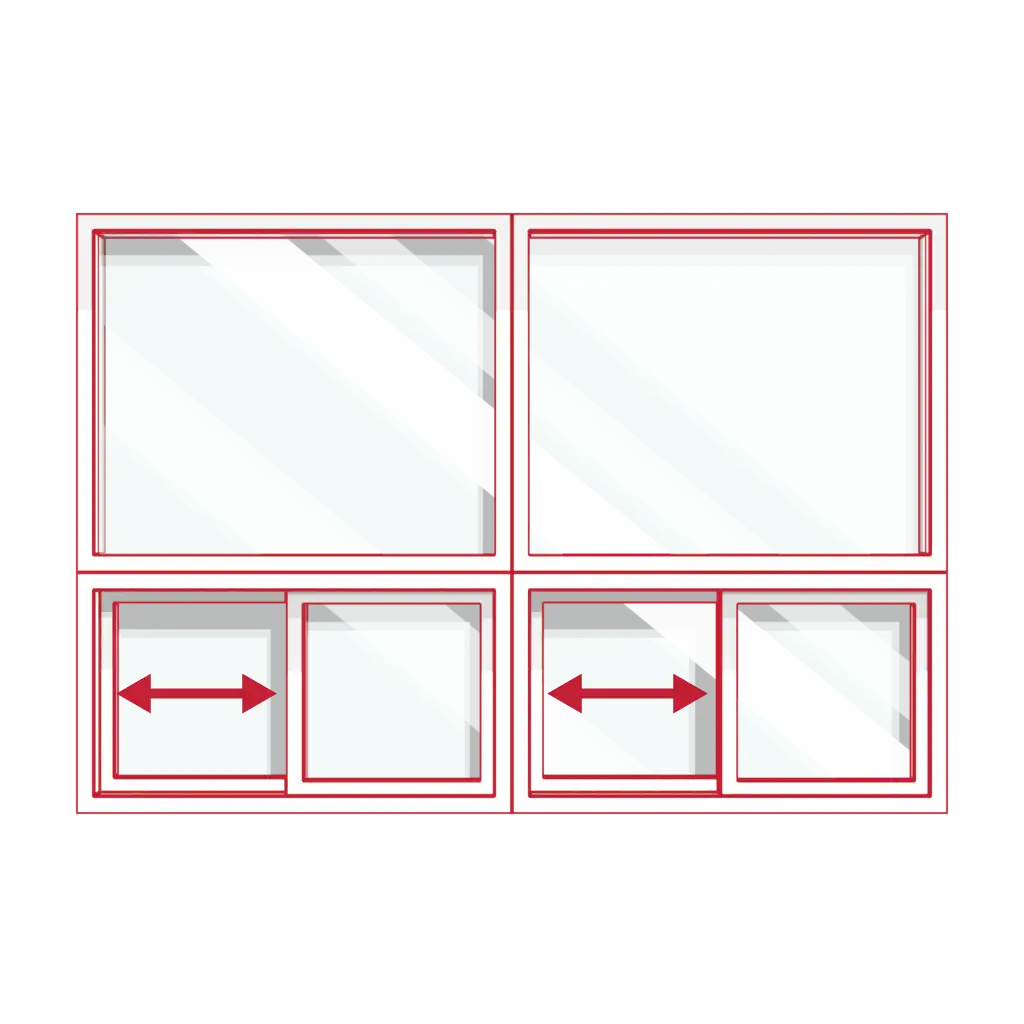

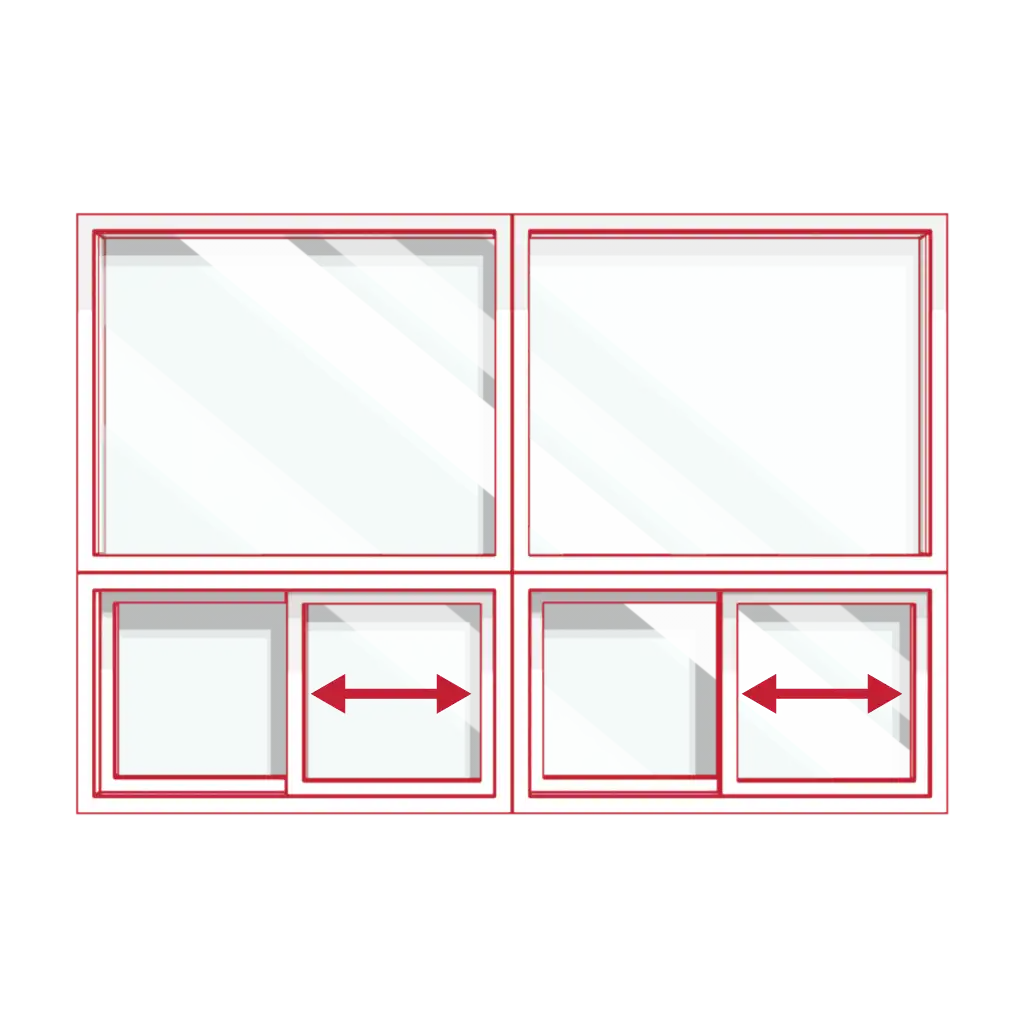

Fixed Over Slider
Specifications
Class R-PG50
Air Infiltration/Exfiltration: A3
Forced Entry Resistance: Pass at Grade 10
N.F.R.C. Certified
A.A.M.A. Certified
Keystone Certified
Hardware
Smart Screen
The Smart Screen offers a spring-loaded design with integrated pull tabs for easy removal
Stylish Window With hidden Tilt Latch
Hidden tilt latches for an elegant sight line. Both sashes tilt in for easy cleaning and easy removal. Lift rails are integral to the sash, not to a glass stop for strength and ease of operation.
Smart Lock
“Flush mount Smart lock” allows you to both unlock and tilt your sash with a single or double lock option, resulting in cleaner sight lines and easier operation. “Flush Mount Smart Locks” are standard
Aluminum Reinforced Frame
Ensures the hardware is securely anchored into the vinyl frame with special cut screws threading into the aluminum, as well as the vinyl.
Insulating System
Hidden springs result in clean lines and smooth operation.

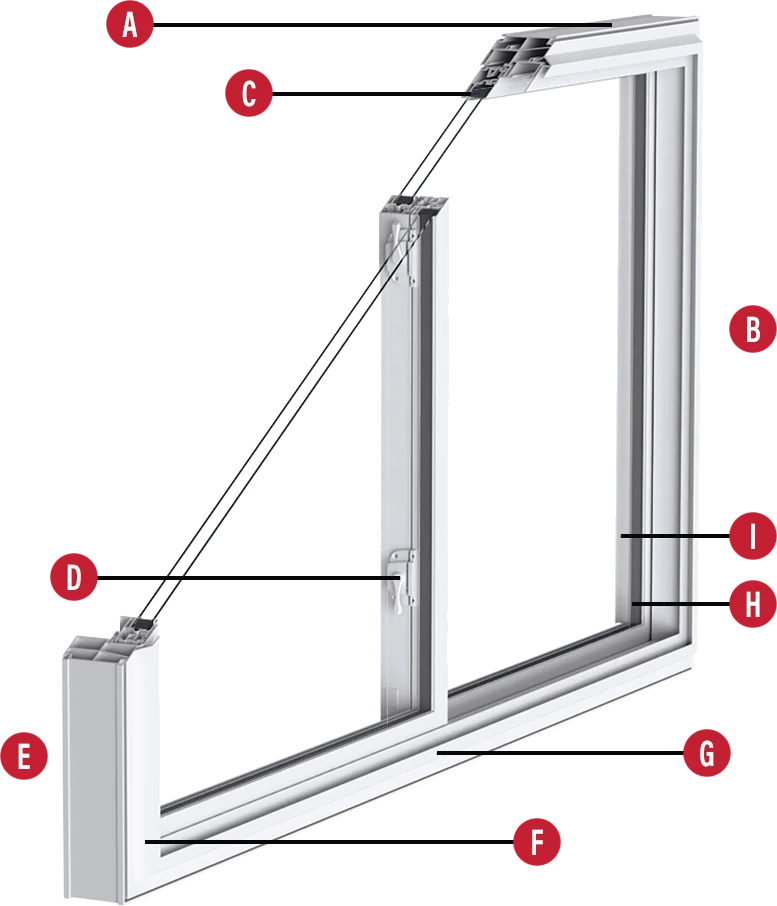

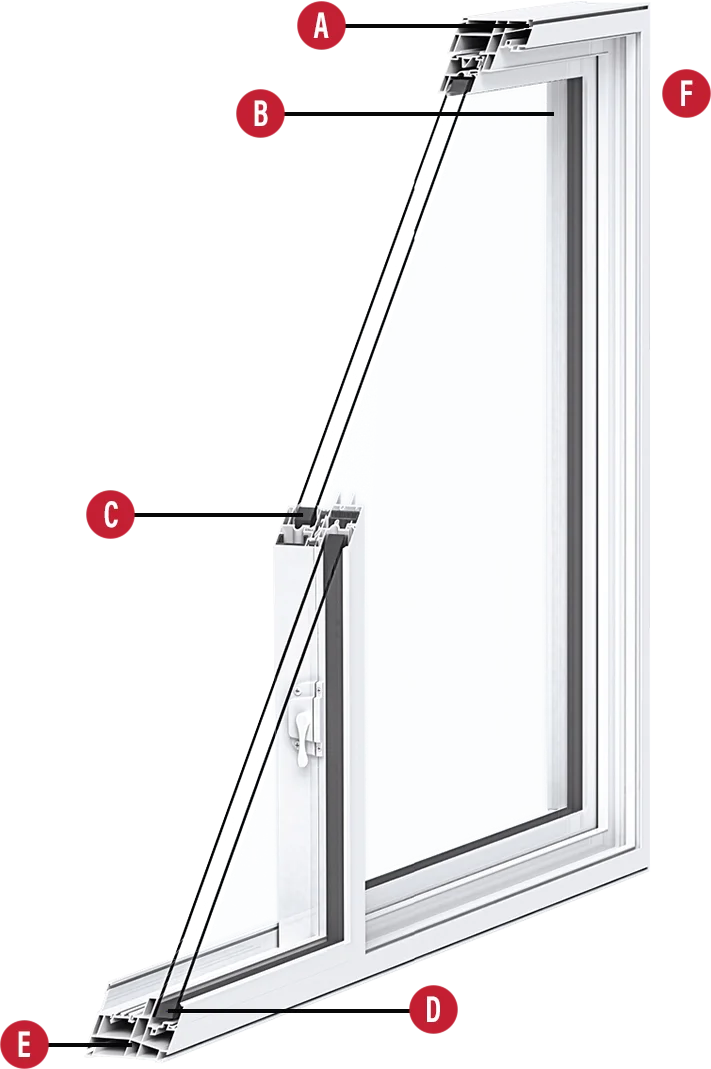

Frame
A
4 5/8" welded frame combined with a variety of mouldings and extensions
B
7/8" Double Glazed seal unit, with optional 1 3/8" Triple Glazed sealed unit for optimum efficiency
C
Flush Mount Smart Lock allows you to unlock and tilt your sash with a single operation. This allows for cleaner sight lines and no tilt latches (Not shown)
D
Dual Durometer inside and outside giving a full perimeter seal bond
E
Integrated 5/8" wood return with cover available
F
Aluminum Reinforcement
G
Smart Screen is standard
Strong, Durable, Maintenance Free uPVC Vinyl Construction
Warranted for a lifetime of performance.
Vinyl is impervious to the elements and never requires painting.
Multi-Chambered Profiles
Designed for energy savings, extra strength and maximum insulation.
Foam “warmware”
Offered as an option, polyurethane foam insulation is injected into the frame and sash of each window.

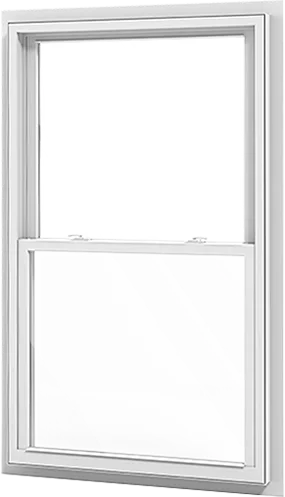

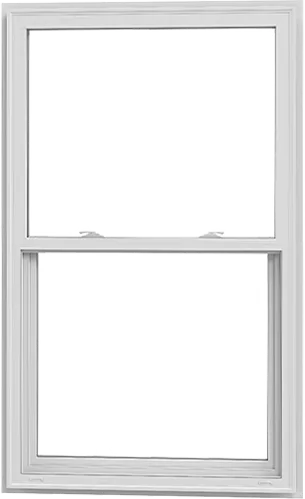

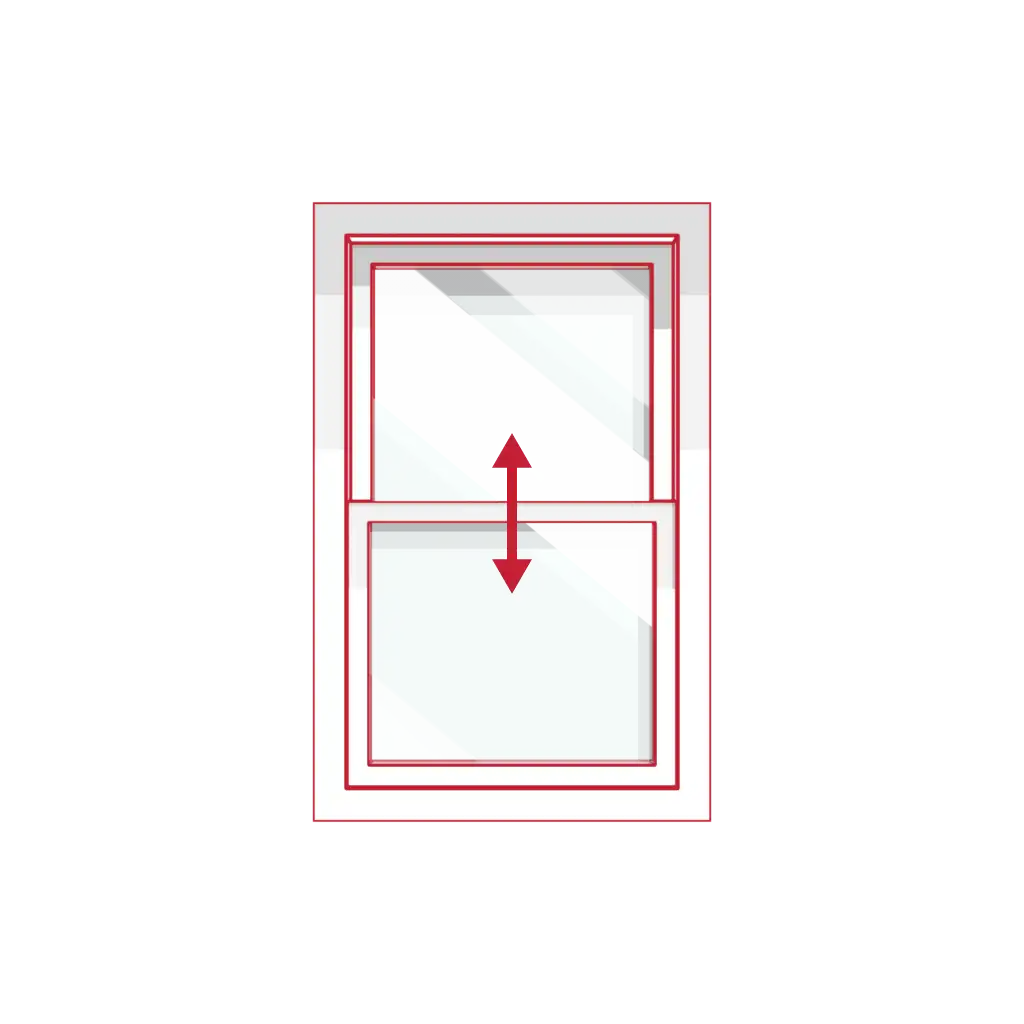

VWD Double Hung windows offer the perfect combination of a traditional window with modern technology for any classic or modern style home.
Double hung windows are versatile and provide both a top and bottom sash opening allowing for improved airflow throughout the home. These high performance windows easily tilt making cleaning accessible from inside your home.
Configurations

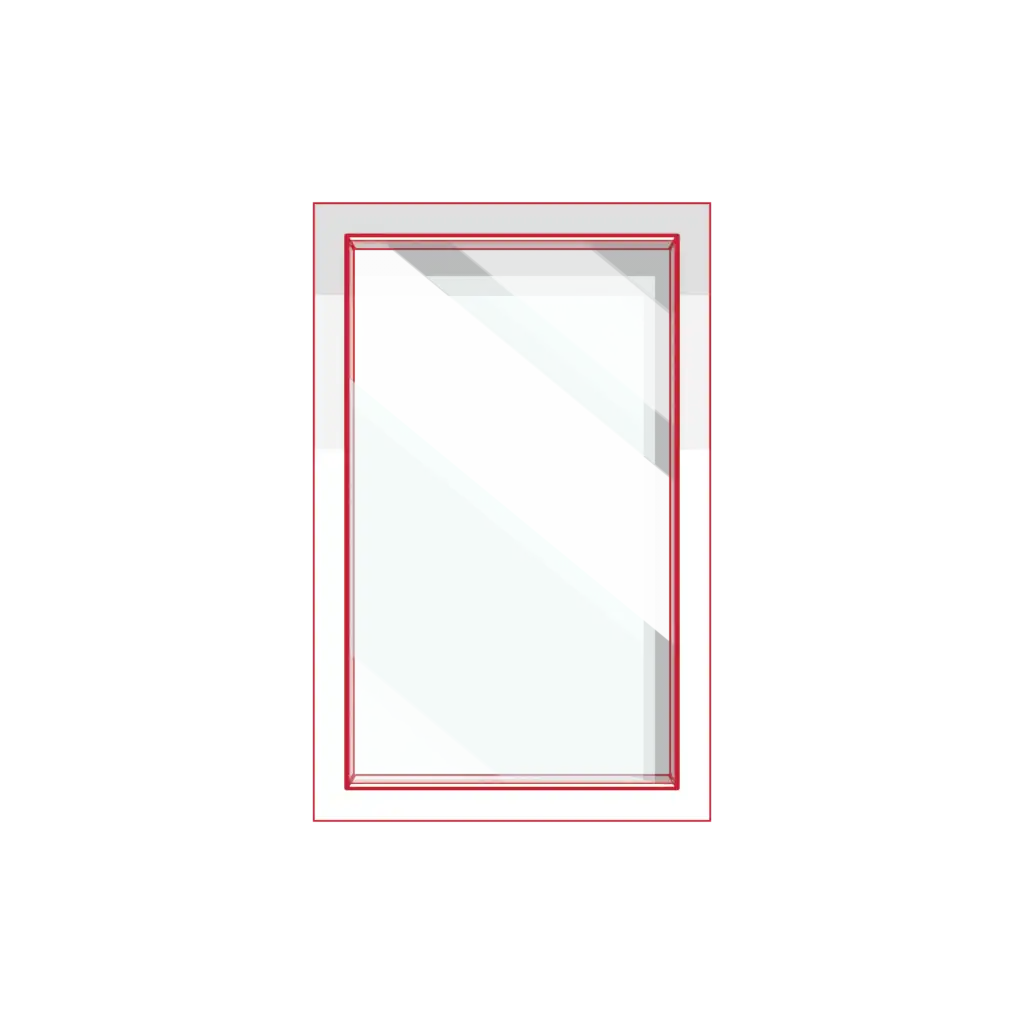

Single

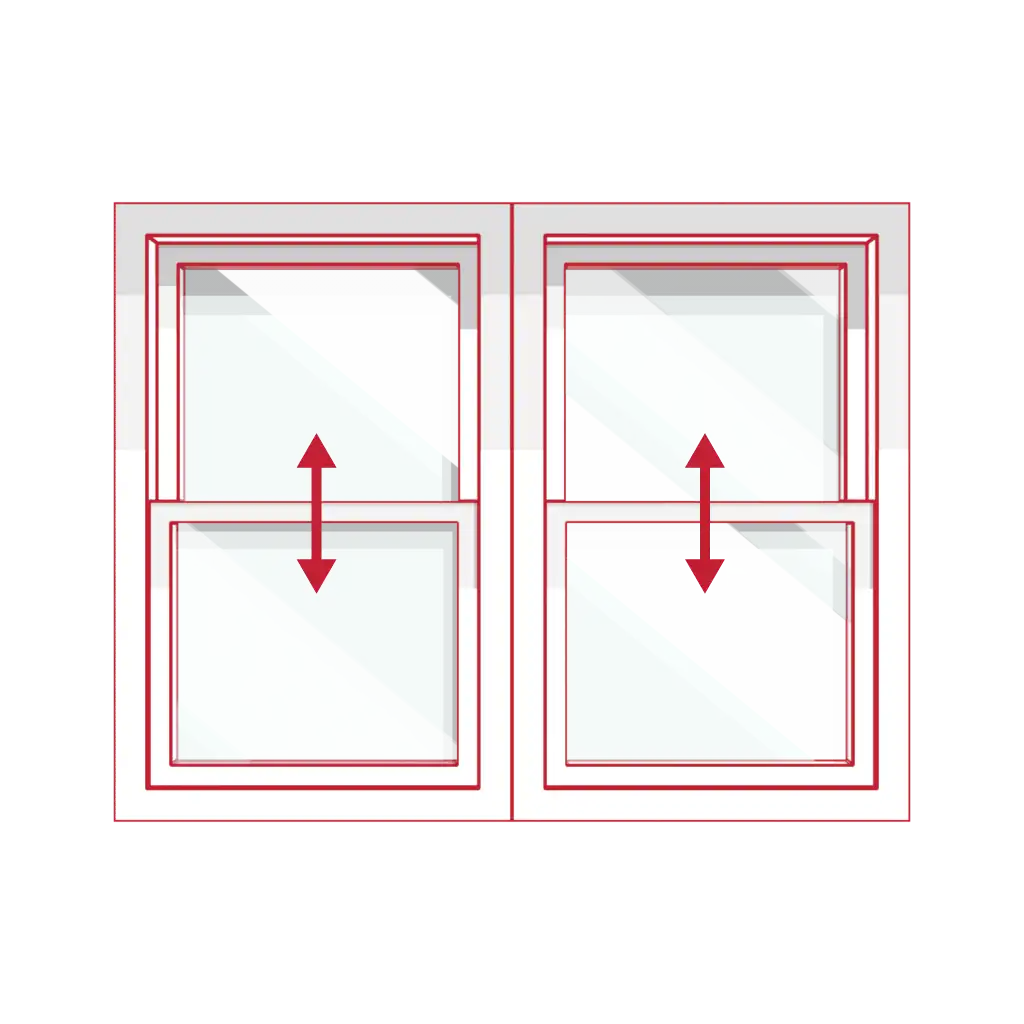

Double

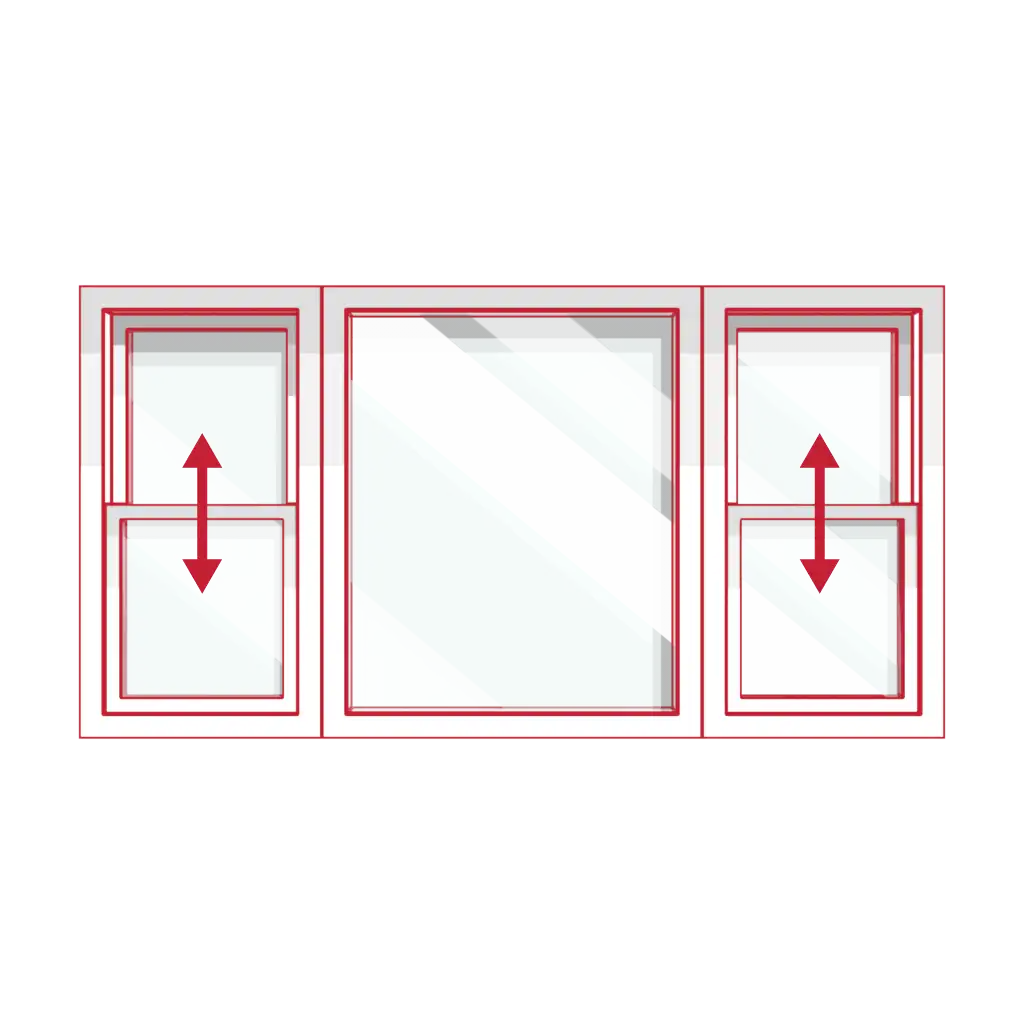

Even Split

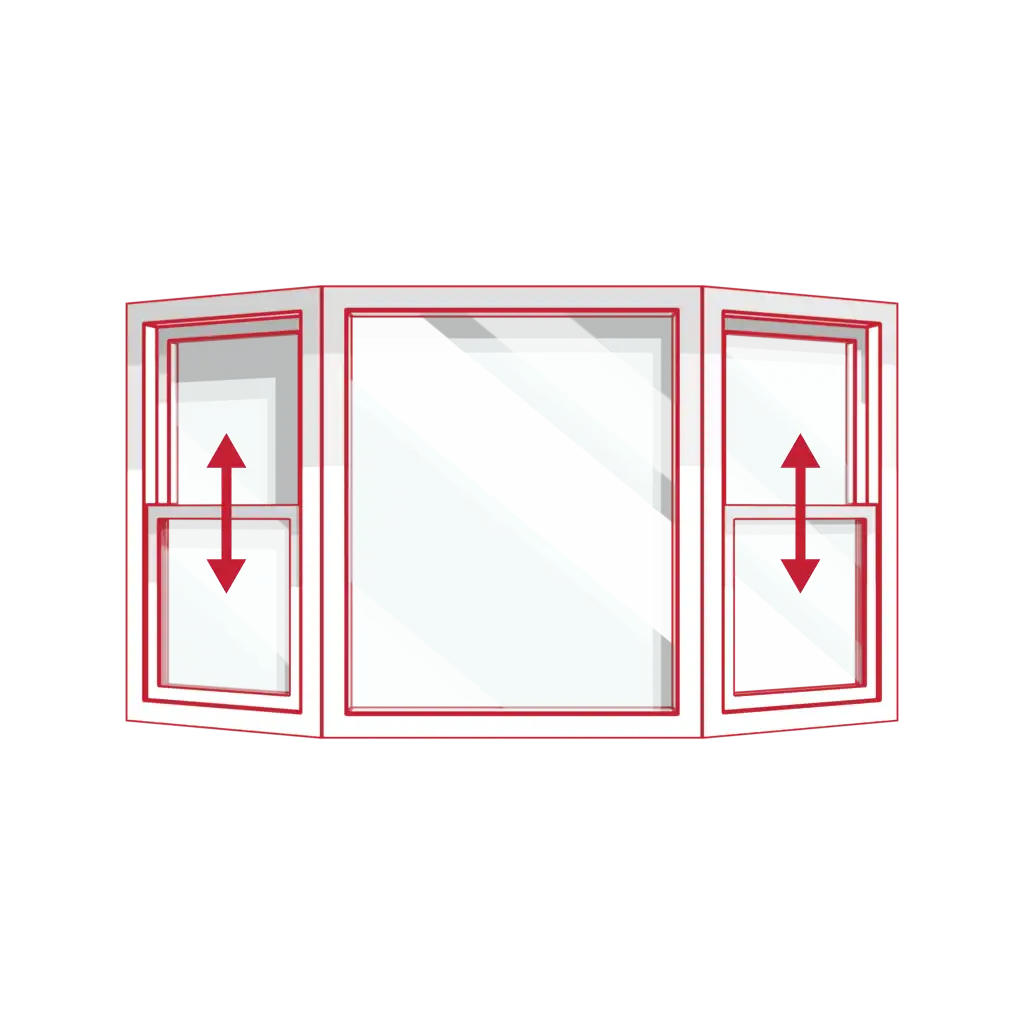

Bay

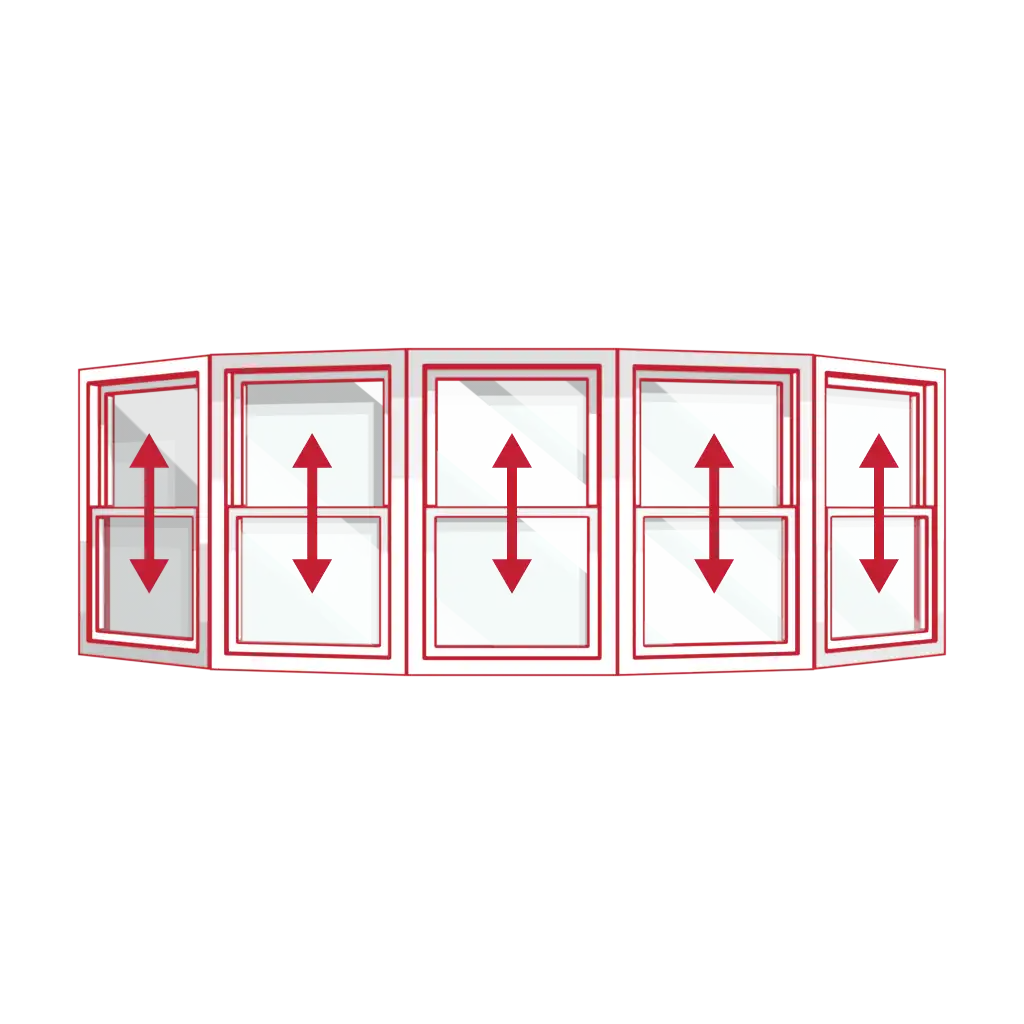

Bow
Specifications
Class R-PG50
Air Infiltration/Exfiltration: A3
Forced Entry Resistance: Pass at Grade 10
N.F.R.C. Certified
A.A.M.A. Certified
Keystone Certified
Hardware
Smart Screen
The Smart Screen offers a spring-loaded design with integrated pull tabs for easy removal
Stylish Window With hidden Tilt Latch
Hidden tilt latches for an elegant sight line. Both sashes tilt in for easy cleaning and easy removal. Lift rails are integral to the sash, not to a glass stop for strength and ease of operation.
Smart Lock
“Flush mount Smart lock” allows you to both unlock and tilt your sash with a single or double lock option, resulting in cleaner sight lines and easier operation. “Flush Mount Smart Locks” are standard
Aluminum Reinforced Frame
Ensures the hardware is securely anchored into the vinyl frame with special cut screws threading into the aluminum, as well as the vinyl.
Insulating System
Hidden springs result in clean lines and smooth operation.

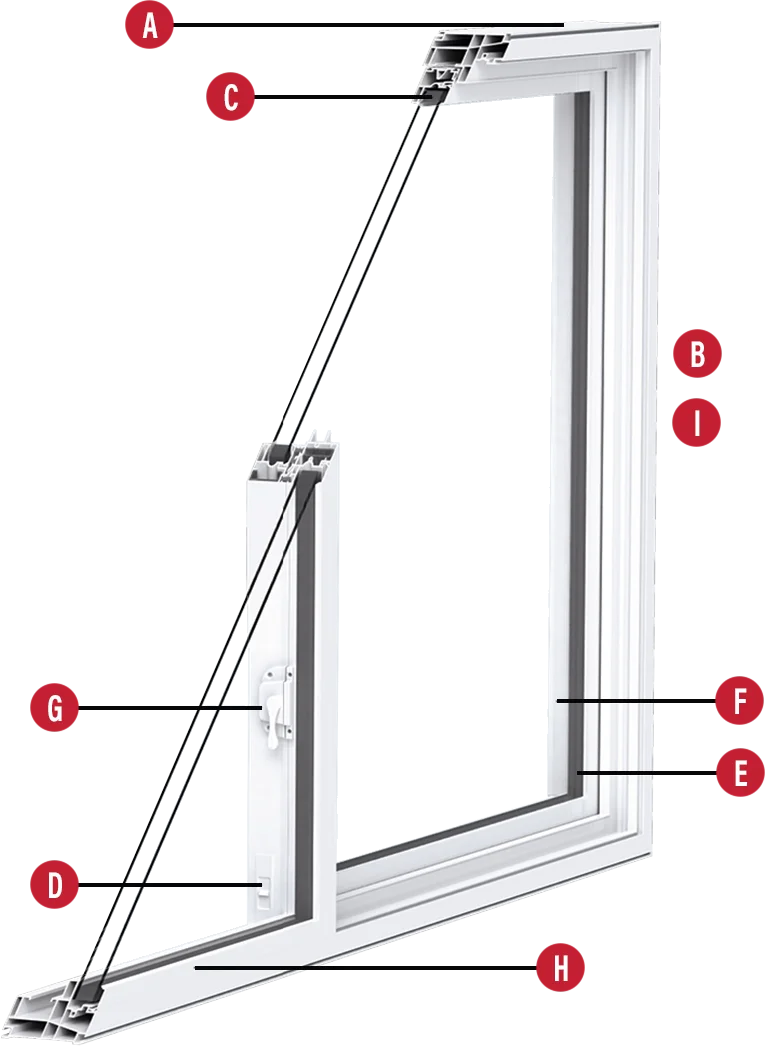

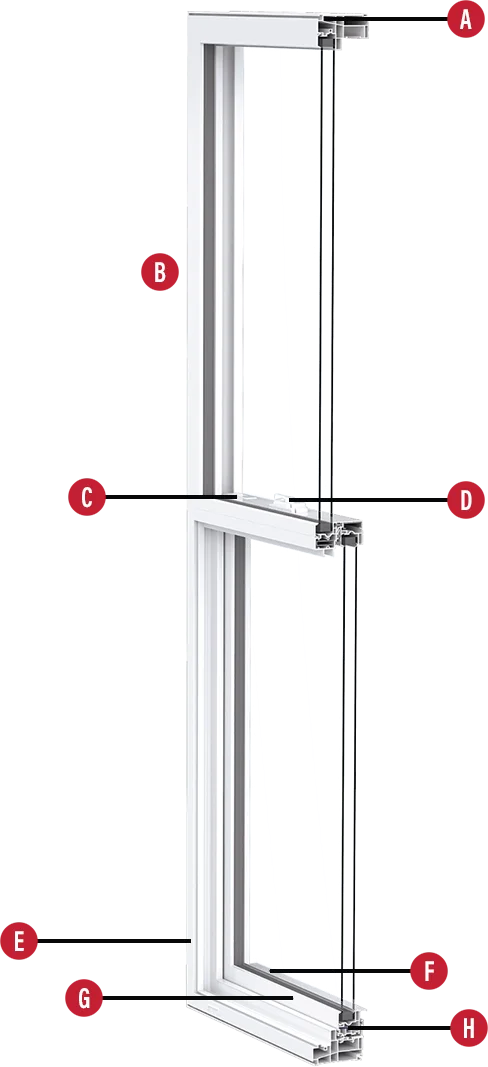

Frame
A
4 5/8" welded frame combined with a variety of mouldings and extensions
B
7/8" Double Glazed seal unit, with optional 1 3/8" Triple Glazed sealed unit for optimum efficiency
C
Flush Mount Smart Lock allows you to unlock and tilt your sash with a single operation. This allows for cleaner sight lines and no tilt latches (Not shown)
D
Dual Durometer inside and outside giving a full perimeter seal bond
E
Integrated 5/8" wood return with cover available
F
Aluminum Reinforcement
G
Smart Screen is standard
Strong, Durable, Maintenance Free uPVC Vinyl Construction
Warranted for a lifetime of performance.
Vinyl is impervious to the elements and never requires painting.
Multi-Chambered Profiles
Designed for energy savings, extra strength and maximum insulation.
Foam “warmware”
Offered as an option, polyurethane foam insulation is injected into the frame and sash of each window.
Premium Window Series

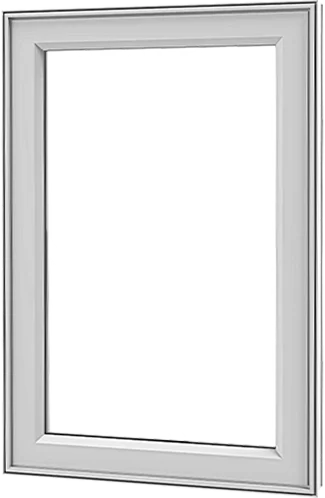

VWD Casement windows are a versatile option that provides timeless elegance to both modern and classic homes. They are designed to work seamlessly with your home and allow you to enjoy an unobstructed view of the outside.
VWD Casement windows can open and close easily with a turn of a foldable crank handle. A multipoint level allows the handle to lock in place creating a sleek look and finish to your window.
For areas of your home that require minimal to full ventilation, casement windows are built with a one sided hinge and can open towards the left or right side.
Configurations
Single
Double
Even Split
Quarter Half Quarter
Bay
Bow
Specifications
Class R-PG50
Air Infiltration/Exfiltration: A3
Forced Entry Resistance: Pass at Grade 10
N.F.R.C. Certified
A.A.M.A. Certified
Keystone Certified
Hardware
The Ultra Casement and Awning Window System
It can be ordered with VWD’s patented Rolling Screen System. The screen travels along tracks invisible to the eye and is secured by a latch when it closes. The Ultra Rolling Screen is something that needs to be experienced to be appreciated. 800M features Patent Pending hidden roll-style screen which can be rolled away out-of-sight.
Superior Triple Seal Weather Stripping
High pile is designed to let the water run out while preventing insects from entering. Neoprene bulb seal is the ideal compression seal. Triple Weather Stripping including two full perimeter bulb seals of premium neoprene MaxTemp™ material.
Truth Ultra Operator with Fold-Away Handle
Our standard Truth Ultra Operator is heavy duty, functional and beautiful. The sleek styling allows the handle to fold into a recess in the casing for a clean look allowing clearance from your window coverings!
Aluminum Reinforced Frame
Ensures the casement hardware is securely anchored into the vinyl frame with special cut screws threading into the aluminum, as well as the vinyl.
Single Lever MultipointLocking System and Hinge
The Truth Maxim Multipoint Lock and Hinge System is the industry’s finest and is standard on our Casements and Awnings. The Truth Maxim Hinge is specifically designed to handle heavier loads from larger windows with ease, time after time! All hinges are concealed when closed. Window’s minimum width of 14” opens 90° for easy cleaning. (Widths 12” – 14”open 70°.)

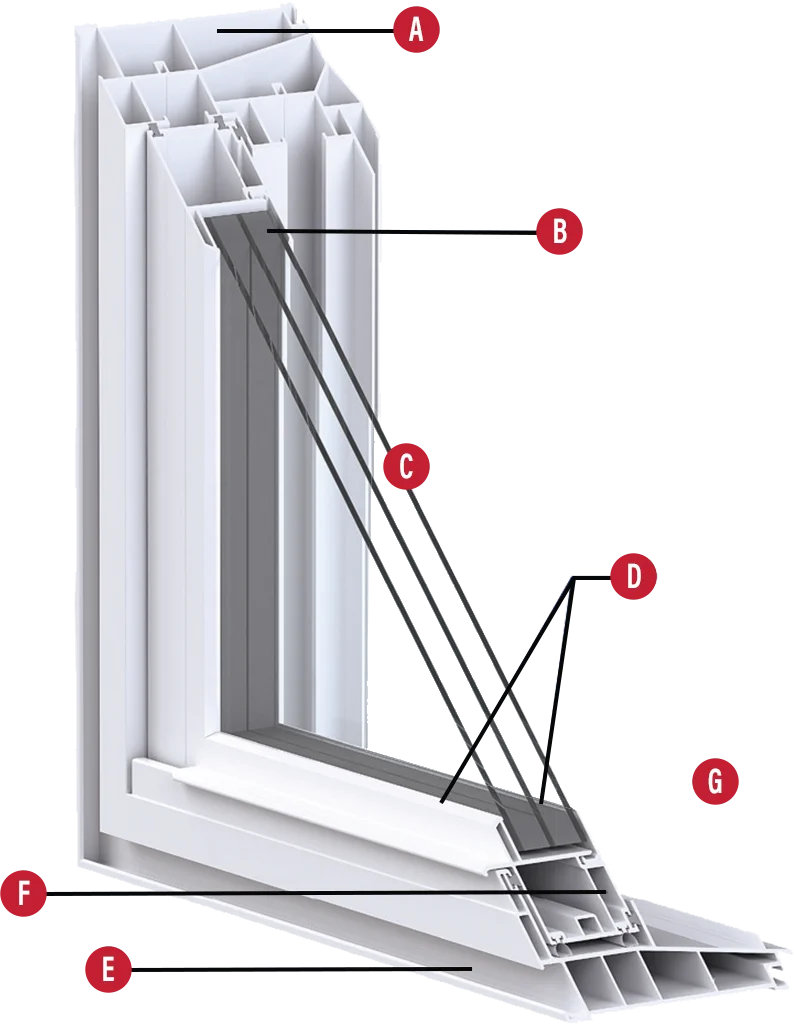

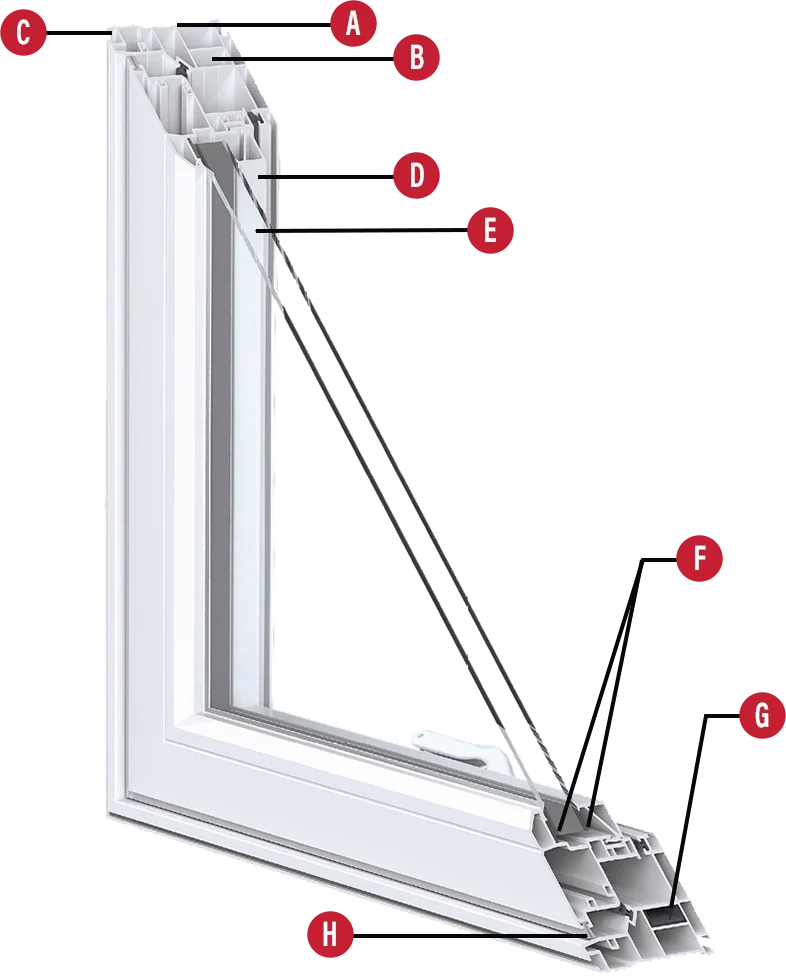

Frame
A
3 1/4" welded frame combines with a variety of mouldings and extensions
B
Multi-Chambered Fusion Welded Frame for optimal strength and performance
C
Accessory Ready Groove
D
Slim Profile Sash
E
Double (7/8") and Triple (1 3/8") glass options available for optimum efficiency
F
Dual durometer inside and outside, and premium heavy duty butyl adhesive, giving a full perimeter seal bond.
G
Aluminum Reinforcement
H
Weather Stripping and Bulb seal for superior seal
Multi-chambered, fusion-welded frame and sash
Excellent for thermal resistance and prevention of heat loss. VWD Windows are extruded in 3 ¼” frame depths for extra rigidity, strength and thermal properties and are used in Replacement and New Construction Applications.
Strong, Durable, Maintenance Free uPVC Vinyl Construction
Warranted for a lifetime of performance.
Vinyl is impervious to the elements and never requires painting.
Slim Profiles Engineered
For maximum light penetration without sacrificing strength. Computer Controlled Precision Miter Cutting Frame and Sash are welded simultaneously for a perfect fit.
Foam “warmware”
Offered as an option, polyurethane foam insulation is injected into the frame and sash of each window.
Computer Controlled Precision Miter Cutting
Frame and Sash are welded simultaneously for a perfect fit.
VWD Awning windows are functional and attractive. The Awning windows are a perfect addition to areas of your home where you are looking for more ventilation and protection from the outdoor elements.
VWD Awning windows are hinged at the top and open outwards. They can open and close easily with a turn of a foldable crank handle. A multipoint level allows the handle to lock in place creating a sleek look and finish for your window.
The Awning is ideal for horizontal spaces and hard-to-reach areas.
Upgrade Options
Configurations
Single
Double
Even Split
Quarter Half Quarter
Bay
Bow
Specifications
Class R-PG50
Air Infiltration/Exfiltration: A3
Forced Entry Resistance: Pass at Grade 10
N.F.R.C. Certified
A.A.M.A. Certified
Keystone Certified
Hardware
The Ultra Casement and Awning Window System
It can be ordered with VWD’s patented Rolling Screen System. The screen travels along tracks invisible to the eye and is secured by a latch when it closes. The Ultra Rolling Screen is something that needs to be experienced to be appreciated. 800M features Patent Pending hidden roll-style screen which can be rolled away out-of-sight.
Superior Triple Seal Weather Stripping
High pile is designed to let the water run out while preventing insects from entering. Neoprene bulb seal is the ideal compression seal. Triple Weather Stripping including two full perimeter bulb seals of premium neoprene MaxTemp™ material.
Truth Ultra Operator with Fold-Away Handle
Our standard Truth Ultra Operator is heavy duty, functional and beautiful. The sleek styling allows the handle to fold into a recess in the casing for a clean look allowing clearance from your window coverings!
Aluminum Reinforced Frame
Ensures the casement hardware is securely anchored into the vinyl frame with special cut screws threading into the aluminum, as well as the vinyl.
Single Lever MultipointLocking System and Hinge
The Truth Maxim Multipoint Lock and Hinge System is the industry’s finest and is standard on our Casements and Awnings. The Truth Maxim Hinge is specifically designed to handle heavier loads from larger windows with ease, time after time! All hinges are concealed when closed. Window’s minimum width of 14” opens 90° for easy cleaning. (Widths 12” – 14”open 70°.)
Frame
A
3 1/4" welded frame combines with a variety of mouldings and extensions
B
Multi-Chambered Fusion Welded Frame for optimal strength and performance
C
Accessory Ready Groove
D
Slim Profile Sash
E
Double (7/8") and Triple (1 3/8") glass options available for optimum efficiency
F
Dual durometer inside and outside, and premium heavy duty butyl adhesive, giving a full perimeter seal bond.
G
Aluminum Reinforcement
H
Weather Stripping and Bulb seal for superior seal
Multi-chambered, fusion-welded frame and sash
Excellent for thermal resistance and prevention of heat loss. VWD Windows are extruded in 3 ¼” frame depths for extra rigidity, strength and thermal properties and are used in Replacement and New Construction Applications.
Strong, Durable, Maintenance Free uPVC Vinyl Construction
Warranted for a lifetime of performance.
Vinyl is impervious to the elements and never requires painting.
Slim Profiles Engineered
For maximum light penetration without sacrificing strength. Computer Controlled Precision Miter Cutting Frame and Sash are welded simultaneously for a perfect fit.
Foam “warmware”
Offered as an option, polyurethane foam insulation is injected into the frame and sash of each window.
Computer Controlled Precision Miter Cutting
Frame and Sash are welded simultaneously for a perfect fit.
VWD Double Hung windows offer the perfect combination of a traditional window with modern technology for any classic or modern style home.
Double hung windows are versatile and provide both a top and bottom sash opening allowing for improved airflow throughout the home. These high performance windows easily tilt making cleaning accessible from inside your home.
Upgrade Options
Configurations
Single
Double
Even Split
Bay
Bow
Specifications
Class R-PG50
Air Infiltration/Exfiltration: A3
Forced Entry Resistance: Pass at Grade 10
N.F.R.C. Certified
A.A.M.A. Certified
Keystone Certified
Hardware
Triple Seal
Three layers of premium Fin Seal stop air and water as they reduce sound transmission. Benefit from the best sliding seals available!
Compression Seal System
A compression style seal closes tight where the sash meets the frame and sliding is not required. Our engineers insisted that you get this premium component!
Night Latch (Optional)
Provides limited ventilation and discourages unlawful entry.
Recessed Tilt Latches
Both sashes tilt in for easy cleaning from inside your home. Our recessed design maintains a clean and attractive sight line in your window.
Cam Locks
Heavy duty 180 degree locking cams pull your sashes tightly together for a great seal!
Smart Lock (Optional)
Smart Locks allow you to both unlock and tilt your sash with a single operation.
Quick Release Coil Balance
Effortless sash movement with simple sash removal.
Quick Lock Shoes
When you tilt your sash for cleaning, a secure locking action from multi-directional shoe expansion break-points secures the sash in place
Frame
A
3 1/4" welded frame combines with a variety of mouldings and extensions
B
Option - 210BMJ features integral Brickmold with Nail Fin on frame (not available on coupled windows)
C
Recessed tilt latches for an elegant slim line. Bottom sash tilts in for easy cleaning
D
Windows 32" & wider feature dual Cam Locks
E
Standard half screen
F
Integrated lift rail on the sash for strength and ease of operation
G
Exterior glazing is the choice of engineers and architects
H
7/8" overall sealed units are glazed with heavy duty glazing tape with coextruded dual durometer gaskets for optimal efficiency
Multi-chambered, fusion-welded frame and sash
Excellent for thermal resistance and prevention of heat loss. VWD Windows are extruded in 3 ¼” frame depths for extra rigidity, strength and thermal properties and are used in Replacement and New Construction Applications.
Metal Reinforced - Built to last
The window's structure is reinforced at the operator, keeper and along the sash stile.
Rust Resistant Fasteners and Hinges
Stainless steel screws and rust resistant hinges are designed for a lifetime of use.
True Over-The-Sill Drainage
Our High Tech Compound-Cut and welded frame creates a sill without the need for drain holes. This eliminates any cold air return into your home found in traditional drainage systems.
Foam “warmware”
Offered as an option, polyurethane foam insulation is injected into the frame and sash of each window.
Integral Brick Mould with Nail Fin
Ideal for brick and siding applications, offering cleaner details and improved performance (210BMJ only).
Sil Options
The 210CS has a pocket sill while the 210VS has a snap-on sloped sill.
VWD Horizontal Sliding windows are a practical addition to your home. They not only offer an unobstructive view but are a perfect fit for larger openings for any modern or classic home.
VWD Horizontal Sliding windows easily glide from left to right, providing a wide window view with full ventilation. Depending on the area of coverage, choose from a two-lite or three-lite slider that features a large picture window with operable end vents.
Upgrade Options
Configurations
Single
Double
Even Split
Bay
Bow
Specifications
Class R-PG50
Air Infiltration/Exfiltration: A3
Forced Entry Resistance: Pass at Grade 10
N.F.R.C. Certified
A.A.M.A. Certified
Keystone Certified
Hardware
Triple Seal
Three layers of premium Fin Seal stop air and water as they reduce sound transmission. Benefit from the best sliding seals available!
Recessed Tilt Latches
Both sashes tilt in for easy cleaning from inside your home. Our recessed design maintains a clean and attractive sight line in your window.
Cam Locks
Heavy duty 180 degree locking cams pull your sashes tightly together for a great seal!
Smart Lock (Optional)
Smart Locks allow you to both unlock and tilt your sash with a single operation.
Quick Lock Shoes
When you tilt your sash for cleaning, a secure locking action from multi-directional shoe expansion break-points secures the sash in place.
Hinged Drain Covers
Designed to keep bugs out while allowing water to flow to the outside.
Hardware
A
3 1/4" welded frame combines with a variety of mouldings and extensions
B
Option - 210BMJ features integral Brickmold with Nail Fin on frame (not available on coupled windows)
C
7/8" Overall sealed units
D
Forced Entry locks are an available option
E
Separate draining system for the interior half of the window from the main exterior drainage system. All drain holes have air resistant flaps
F
All channels are covered with easily washable, removable vinyl covers for a lustrous, finished appearance
G
Fullscreen of heavy-duty material; the Extruded half screen is available
H
Sash tilts in for easy cleaning and easy removal
I
Pull Rail is integrated into the sash, not to a glass stop for strength and ease of operation
Multi-chambered, fusion-welded frame and sash
Excellent for thermal resistance and prevention of heat loss. VWD Windows are extruded in 3 ¼” frame depths for extra rigidity, strength and thermal properties and are used in Replacement and New Construction Applications.
Metal Reinforced - Built to last
The window's structure is reinforced at the operator, keeper and along the sash stile.
Rust Resistant Fasteners and Hinges
Stainless steel screws and rust resistant hinges are designed for a lifetime of use.
Foam “warmware”
Offered as an option, polyurethane foam insulation is injected into the frame and sash of each window.
Attachments:
The 300 Tilt Slider frames feature 3 1/4” standard frame depth for retrofit installations.
Double Hung BMJ Window Frames
Offer an excellent value with a unique structural approach to resolving the need for exterior accessories with any cladding choices.
It adds structure to the window and, as it is an integrated part of the window frame, eliminates the need to seal the juncture between the frame and a brick mould. The BMJ is an alternative to brick mould or siding J trims.
VWD Horizontal Sliding windows are a practical addition to your home. They not only offer an unobstructive view but are a perfect fit for larger openings for any modern or classic home.
VWD Horizontal Sliding windows easily glide from left to right, providing a wide window view with full ventilation. Depending on the area of coverage, choose from a two-lite or three-lite slider that features a large picture window with operable end vents.
Configurations
Fixed Over Single Slider
Double
Combination
Fixed Over Slider
Specifications
365 – LC – Performance Ratings
Class LC-PG30
Air Infiltration/Exfiltration: A3
Forced Entry Resistance: Pass at Grade 10
N.F.R.C. Certified
A.A.M.A. Certified
Keystone Certified
365 – R – Performance Ratings
Class R-PG55
Air Infiltration/Exfiltration: A3
Forced Entry Resistance: Pass at Grade 20
N.F.R.C. Certified
A.A.M.A. Certified
Keystone Certified
Hardware
Lift Out Sash Removal
Both sashes completely lift out of the frame without the use of tools or complicated manipulation.
Brass Rollers
Large sashes glide smoothly on durable, corrosion resistant brass rollers.
Weatherstrip for Results
Premium quality fin seal is the weather resistant design that is ideal for sliders.
Cam Locks
Heavy duty 180 degree locking cams pull your sashes tightly together for a great seal!
Hinged Drain Covers
Designed to keep bugs out while allowing water to flow to the outside.
Insulating System
Hidden springs result in clean lines and smooth operation.
Frame
A
3 1/4" welded frame combines with a variety of mouldings and extensions
B
7/8" overall sealed units are glazed with heavy duty glazing tape with coextruded dual durometer gaskets for optimal efficiency
C
Both sashes lift out for easy removal. Pull rails are integral to the sashes not to a glass stop for strength and ease of operation
D
Exterior glazing is the choice of engineers and architects, looks great and resists exterior air pressure for higher performance
E
Windows 32" and higher feature dual Cam Locks. Forced entry locks are an available option
F
Full screen heavy duty material. Extruded half screen available
Multi-chambered, fusion-welded frame and sash
Excellent for thermal resistance and prevention of heat loss. VWD Windows are extruded in 3 ¼” frame depths for extra rigidity, strength and thermal properties and are used in Replacement and New Construction Applications.
Metal Reinforced - Built to last
The window's structure is reinforced at the operator, keeper and along the sash stile.
Built-in Water Management Systems
Carefully engineered independent water management system allows for quick drainage to the exterior.
VWD Single hung windows visually offer a traditional look while providing security with little maintenance. They complement any architectural style.
Single hung windows feature a bottom sash that raises and tilts inwards, while the top sash is stationary. These windows are designed to be weather resistance and provide easy access for cleaning.
Configurations
Single
Double
Even Split
Bay
Bow
Specifications
Class R-PG55
Air Infiltration/Exfiltration: A3
Forced Entry Resistance: Pass at Grade 10
N.F.R.C. Certified
A.A.M.A. Certified
Keystone Certified
Hardware
Triple Seal
Three layers of premium Fin Seal stop air and water as they reduce sound transmission. Benefit from the best sliding seals available!
Double Neoprene Bulbs Compression
style seals close tight where the sash meets the frame and sliding is not required. Our engineers insisted that you get this premium component!
Recessed Tilt Latches
Your operating sash tilts in for easy cleaning from inside your home. Our recessed design maintains a clean and attractive sight line in your window.
Cam Locks
Heavy duty 180 degree locking cams pull your operating sash and frame tightly together for a great seal!
Smart Lock (Optional)
Smart Locks allow you to both unlock and tilt your sash with a single operation.
Quick Lock Shoes
When you tilt your sash for cleaning, a secure locking action from multi-directional shoe expansion break-points secures the sash in place.
Hinged Drain Covers
Designed to keep bugs out while allowing water to flow to the outside.
Frame
A
3 1/4" welded frame combines with a variety of mouldings and extensions
B
Option - 201BMJ features integral Brickmold with Nail Fin on frame (not available on coupled windows)
C
Recessed tilt latch for an elegant sightline. Bottom sash tilts in for easy cleaning
D
Windows 32" & wider feature dual Cam Locks
E
Standard half screen
F
Integrated lift rail on the sash for strength and ease of operation
G
Exterior glazing is the choice of engineers and architects
H
7/8" overall sealed units are glazed with heavy duty glazing tape with coextruded dual durometer gaskets for optimal efficiency
Multi-chambered, fusion-welded frame and sash
Excellent for thermal resistance and prevention of heat loss. VWD Windows are extruded in 3 ¼” frame depths for extra rigidity, strength and thermal properties and are used in Replacement and New Construction Applications.
Metal Reinforced - Built to last
The window's structure is reinforced at the operator, keeper and along the sash stile.
Built-in Water Management Systems
Carefully engineered independent water management system allows for quick drainage to the exterior.
BMJ Window Frames
Offer an excellent value with a unique structural approach to resolving the need for exterior accessories with any cladding choices.
It adds structure to the window and, as it is an integrated part of the window frame, eliminates the need to seal the juncture between the frame and a brick mould. The BMJ is an alternative to brick mould or siding J trims.
VWD Horizontal Sliding windows are a practical addition to your home. They not only offer an unobstructive view but are a perfect fit for larger openings for any modern or classic home.
VWD Horizontal Sliding windows easily glide from left to right, providing a wide window view with full ventilation. Depending on the area of coverage, choose from a two-lite or three-lite slider that features a large picture window with operable end vents.
Configurations
End Vent 1/3-1/3-1/3
End Vent Fixed Over Twin
1/4-1/2-1/4 End Vent
Twin End Vent
Specifications
Class R-PG25
Air Infiltration/Exfiltration: A3
Forced Entry Resistance: Pass at Grade 10
N.F.R.C. Certified
A.A.M.A. Certified
Keystone Certified
Hardware
Triple Seal
Three layers of premium Fin Seal stop air and water as they reduce sound transmission. Benefit from the best sliding seals available!
Double Neoprene Bulbs Compression
style seals close tight where the sash meets the frame and sliding is not required. Our engineers insisted that you get this premium component!
Recessed Tilt Latches
Your operating sash tilts in for easy cleaning from inside your home. Our recessed design maintains a clean and attractive sight line in your window.
Cam Locks
Heavy duty 180 degree locking cams pull your operating sash and frame tightly together for a great seal!
Smart Lock (Optional)
Smart Locks allow you to both unlock and tilt your sash with a single operation.
Quick Lock Shoes
When you tilt your sash for cleaning, a secure locking action from multi-directional shoe expansion break-points secures the sash in place.
Hinged Drain Covers
Designed to keep bugs out while allowing water to flow to the outside.
Frame
A
3 1/4" welded frame combines with a variety of mouldings and extensions
B
Optional integrated BMJ features integral Brickmold with Nail Fin on frame (not available on coupled windows)
C
7/8" Overall sealed units
D
Recessed tilt latch for an elegant sightline
E
Sash tilts in for easy cleaning and easy removal
F
Pull Rail is integrated into the sash, not to a glass stop for strength and ease of operation
G
Quick-lock tilt shoe mechanism for added security
H
Exterior Glazing is the choice of engineers and architects
I
Standard half screen
Multi-chambered, fusion-welded frame and sash
Excellent for thermal resistance and prevention of heat loss. VWD Windows are extruded in 3 ¼” frame depths for extra rigidity, strength and thermal properties and are used in Replacement and New Construction Applications.
Metal Reinforced - Built to last
The window's structure is reinforced at the operator, keeper and along the sash stile.
Built-in Water Management Systems
Carefully engineered independent water management system allows for quick drainage to the exterior.
Integral Brick Mould with Nail Fin
Ideal for brick and siding applications, offering cleaner details and improved performance (301BMJ only).
Foam “warmware”
Offered as an option, polyurethane foam insulation is injected into the frame and sash of each window.
VWD Horizontal Sliding windows are a practical addition to your home. They not only offer an unobstructive view but are a perfect fit for larger openings for any modern or classic home.
VWD Horizontal Sliding windows easily glide from left to right, providing a wide window view with full ventilation. Depending on the area of coverage, choose from a two-lite or three-lite slider that features a large picture window with operable end vents.
Configurations
End Vent 1/3-1/3-1/3
End Vent Fixed Over Twin
1/4-1/2-1/4 End Vent
Twin End Vent
Specifications
Class R-PG25
Air Infiltration/Exfiltration: A3
Forced Entry Resistance: Pass at Grade 10
N.F.R.C. Certified
A.A.M.A. Certified
Keystone Certified
Hardware
Triple Seal
Three layers of premium Fin Seal stop air and water as they reduce sound transmission. Benefit from the best sliding seals available!
Double Neoprene Bulbs
Compression style seals close tight where the sash meets the frame and sliding is not required. Our engineers insisted that you get this premium component!
Recessed Tilt Latches
Your operating sash is designed for easy removal when cleaning. Pull down the top tilt style latches and lift out the sash!
Cam Locks
Heavy duty 180 degree locking cams pull your operating sash and frame tightly together for a great seal!
Hinged Drain Covers
Designed to keep bugs out while allowing water to flow to the outside.
Hardware
A
3 1/4" welded frame combines with a variety of mouldings and extensions
B
Optional integrated BMJ features integral Brickmold with Nail Fin on frame (not available on coupled windows)
C
7/8" Overall sealed units
D
Recessed tilt latch for an elegant sightline
E
Sash tilts in for easy cleaning and easy removal
F
Pull Rail is integrated into the sash, not to a glass stop for strength and ease of operation
Fusion Welded Frame and Sash
Welding creates a fully sealed, continuous profile that eliminates potential air and water penetration through frame and sash corners.
Maintenance Free Solid uPVC Vinyl Profiles
The multi-chambered design provides structural strength as well as insulating air pockets which reduce heat and cold transfer.
Built-in Water Management Systems
Carefully engineered independent drain allows for quick water management to the exterior.
Integral Brick Mould with Nail Fin
Ideal for brick and siding applications, offering cleaner details and improved performance 303BMJ only.
Available Colours
Black
Iron Ore
Slate
Commercial Brown
Sable
Windswept Smoke
Chestnut Brown
Pebble
Sandalwood
Storm
Forest Green
Marine Dusk
Global Specifications
Double Glazed System (7/8” Overall)
Features a flexible dual durometer seal that hugs the sash glass from both sides, this system also includes a glazing tape applied to the interior side resulting in an unprecedented barrier against air and water penetration.
Triple Glazed (1 3/8” Overall)
Features two ½” airspaces that will dramatically improve the performance of your windows by reducing heat loss and conserving energy, for an even better performance upgrade to Double Low E & Argon.
Argon and Krypton Gas filling
Maximize the insulation value of your sealed unit with your choice of Argon, Krypton and Krypton/Argon blend. (glass)
TempSmart™ Spacer
It is a flexible, U-shaped, silicone foam tape product used to wrap around and cushion our center decorative panel. Featuring a vapor barrier backing, the product used in combination with Hot Melt butyl, provides a superior Warm – Edge seal.
Stainless Steel Spacer
This is a warm edge spacer. This spacer will reduce condensation, heat loss, and provide clean, graceful lines and aesthetically provide an appealing appearance. Because it is made from low conductive steel, it provides natural structural strength in your window. Additionally, because it is steel, it is the perfect barrier preventing moisture penetration or gas leakage.
See and hear the difference with Diamond Premium Glass
VWD’s Diamond Premium Glass is 33% to 100% thicker than industry standards—that’s why it’s called Diamond Premium Glass! What this means is that outside noises stay outside where they belong, truly making your home a sanctuary. A window with Diamond Premium Glass will withstand much greater impact and will be a better insulator.
The following options are only available with 303VS/303VSEV models…
Commercial Glazing Technique
Exterior glass stops, combined with the Double Bond Glazing, are more effective in maintaining a well-sealed window.
High Performance Glass Options
Choose Solar Gain Low E for free solar heat or Solar Shield Low E for reducing solar heat gain. Argon and Krypton Gas fillings will maximize heat savings! KeepSafe Glass is the laminate of choice for security, quiet and safety! E-Clean Glass uses the energy of the sun to reduce dirt on your glas
LIFETIME WINDOW WARRANTY (LIMITED)
All vinyl windows manufactured by Vinyl Window Designs Ltd. ( VWD”) are warranted against defects in materials and workmanship, occurring as a result of the manufacturing process. The following window and patio door parts and components are covered during the stated period, under normal use and service, subject to the terms and conditions contained in this limited warranty.
LIFETIME ON INSULATING GLASS:
Vinyl Window Designs warrants that your Stainless and TempSmart insulating glass units contained in the windows and patio doors will conform to the Federal specification for insulating glass units fabricated from select ‘A’ quality glass and that under normal conditions there will not be an obvious obstruction of vision which is the result of filmformation or dust collection between the interior glass surfaces for as long as you own your home in accordance with all terms specified in this warranty. Warranty on any other spacer systems is limited to five (5) years. Warranty on any glass with internal blinds is limited to ten(10) years.
LIFETIME ON VINYL
VWD vinyl window and patio door frames and sash shall be free from defects in material and workmanship, incl. Blistering, peeling, flaking, and corroding. NOTE: Painted and/or wood grain products are limited to a ten (10) year warranty. (See VWD Exterior Colour Warranty for details)
LIFETIME ON HARDWARE
VWD warrants that Truth Operators and Multipoint Locks shall properly perform their functions for the life of the window and patio door. Ultra Screen hardware and other hardware are warranted for ten (10) years from the date of purchase. Screen mesh is not warranted against normal wear and tear.
GENERAL CONDITIONS
The Limited Lifetime Warranty stipulated in this document is the only warranty applicable to the vinyl windows and patio doors manufactured by VWD. This Limited Warranty is in lieu of all other warranties, liabilities, and obligations of VWD, oral or written, expressed, or statutory, Implied warranties of merchantability and fitness for a particular purpose are limited to the duration of this Limited Warranty, except as may be otherwise accorded by law. To the extent permitted by law, VWD shall not be liable for consequential damages of any kind, including, but not limited to, any damage to the building, its contents, or any person therein, inconvenience, or any other cost except as specifically set forth herein. No representative of VWD or its distributors or contractors is authorized to make any change in, or modification to , this warranty.
PRODUCT USE
This Limited Warranty applies only in respect of VWD vinyl window and patio door products used in normal residential applications in Canada or the United States and strictly for the purpose for which they are intended and in respect of the building in which they were originally installed. This warranty is extended to the original owner for his residential, single dwelling only, Warranty on condominiums, rental, commercial or institutional properties is limited to five (5) years or less as specified herein.
REPLACEMENT PARTS OR REPAIRS
VWD reserves the right to discontinue or change any design or method of manufacture. If VWD agrees to make a replacement under the terms of this Limited Warranty and an exact replacement part is not available, VWD reserves the right to substitute a part or parts of equal or superior quality at its sole discretion.
The warranty period in respect of any VWD Vinyl window and patio door product installed pursuant to this Limited Warranty shall be equal to the remainder of the warranty period applicable to the VWD vinyl window and patio door product originally installed.
LIMITED WARRANTY LIMITATIONS
VWD’s liability hereunder is limited solely and exclusively to repair or replacement, at the option of VWD, of the defective VWD vinyl window and patio door product, and VWD will not be liable for any labour or installation costs. All parts are FOB Toronto, ON, or the closest authorized VWD Dealer/Distributor. This warranty is to the original owner and is in effect as long as you own your home. A portion of this warranty can be transferred to a new owner provided that VWD receives written notification of the change in ownership and $150.00 transfer fee within thirty (30) days of the property changing ownership, else the warranty ceases to be in effect. A transferred warranty is limited to a period of ten (10) years from the date of the original purchase of the windows and patio doors.
Have a question?
Don’t see a specific product listed here? We may still be able to help. Please contact us using the form below and a representative will get back to you shortly.
Del | Windows
DEL Windows & Doors is Canadian owned and operated with over 100 years of combined industry experience in PVC window and insulated steel door manufacturing. We offer two series from DEL windows including Timberview and Lakeview.
