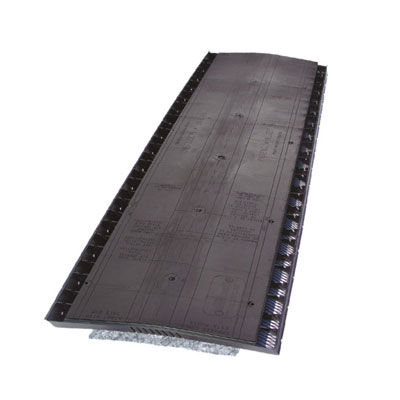

General Details
Specifications |
|
|---|---|
| Compatibility | 12” [305 mm] or 10” [254 mm] width ridge cap shingles |
| Filter | Yes |
| Nails Included | 3" ring shank nails |
| Easy Tear | 3'' (76 mm) increments |
| Slope/Pitch Range | 3:12 - 16:12 |
| Installation Method | Hand Nail |
| Colours | Black |
| Construction | Polypropylene |
| Height | 7/8" (22 mm) |
| Lenghth Per Piece | 4' (121.9 cm) |
| Net Free Area (NFA) | 18 sq.in./lin.ft. (116 sq. cm per lm) |
Part of the GAF BEST roofing system.
Specifications |
|
|---|---|
| Compatibility | 11.75" (299 mm) |
| Nails Included | Includes Smart Nails™ for reliable hand nail installation or 1 3/4” (44.4 mm) coil nails for nail gun installation |
| Slope/Pitch Range | 2:12 - 20:12 |
| Installation Method | Nail Gun: .625" (16 mm) |
| Colours | Black |
| Construction | Composite Fiber |

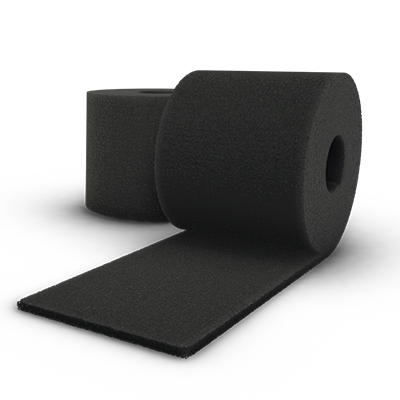

| Style | Mesh Roll Ridge Vent |
| Width | 11.75" (299 mm) |
| Length Per Roll | 20' (609.6 cm) |
| Thickness | .75" (19 mm) |
| Net Free Areas | 16.9 sq. in./lin. ft. |
Part of the GAF Better roofing system.

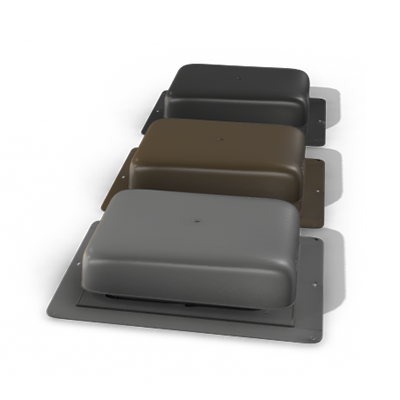

Roof Louver – RT65
Specifications |
|
|---|---|
| Compatibility | 11.75" (299 mm) |
| Nails Included | Includes Smart Nails™ for reliable hand nail installation or 1 3/4” (44.4 mm) coil nails for nail gun installation |
| Slope/Pitch Range | 3:12 or greater |
| Installation Method | Nail Gun: .625" (16 mm) |
| Colours | Black, Brown, Gray, Weathered Wood |
| Construction | High-Impact Resin |
| Style | Plastic Roof Louver |
| Opening Size | 11 1/8" x 10" (283 mm x 254 mm) |
| Width | 18 1/2" (470 mm) |
| Length | 18" (457 mm) |
| Net Free Areas | 60 sq. in. NFA |
Part of the GAF Good roofing system.

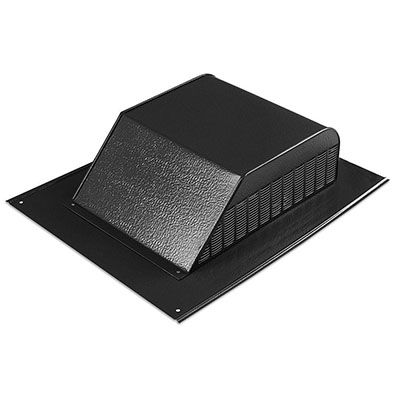

Roof Louver – Slant-Back
Specifications |
|
|---|---|
| Filter | Option Available |
| Slope/Pitch Range | 3:12 or Greater |
| Installation Method | Nail Gun: .625" (16 mm) |
| Colours | Black, Brown, Gray, Weathered Wood |
| Construction | Aluminum |
| Opening Size | 10" (254 mm) |
| Width | 16" (406.4 mm) |
| Length | 20.5" |
| Height | 5 1/2" (140 mm) |
| Net Free Areas | 60 sq. in. NFA |
